Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7882702 Door Ref W. Appelez-nous -
2 D7828203 Inner Door, Ref Appelez-nous -
3 D7783310 Bucket Ref Appelez-nous -
4 67003697 Shelf Ref Door   (Replaces: D7783410) Special Order $ 78.17

5 B0566723 Insulation Appelez-nous -
6 C8987104 Seal, Door Dike Appelez-nous -
7 B0523562 Insul. By The Ft. Appelez-nous -
8 10104401 Gasket, Door (w Ref) Appelez-nous -
9 M0219717 Screw Appelez-nous -
10 D7781202 Module-dairy Appelez-nous -
11 D7781315 Door Dairy Appelez-nous -
12 D7806403 Container Sec. Ser. Appelez-nous -
13 D7814607 Snugger, Door Appelez-nous -
14 D3799802 Butter Tray Appelez-nous -
15 D7695616 Egg Bucket Appelez-nous -
16 D7805909 Cover, Egg Bucket Appelez-nous -
17 10096904 Panel Black Glass Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

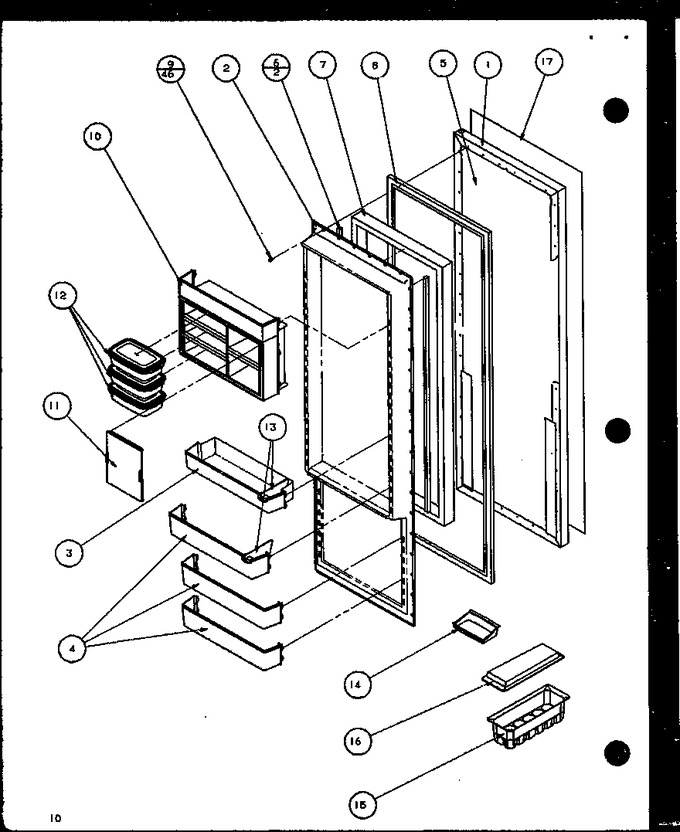

Diagram for 36091 (BOM: P1108703W)
