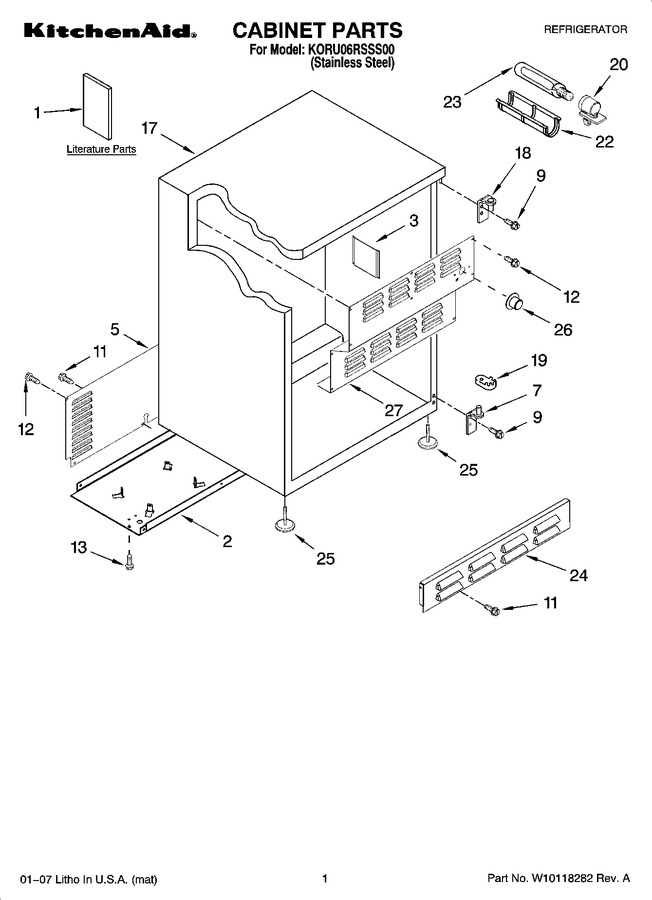

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2319106		Energy Guide		Appelez-nous	-
1	2311008		Use & Care Guide		Appelez-nous	-
1	2311029		Service & Wiring Sheet		Appelez-nous	-
2	2311018		Baseplate Assembly		Appelez-nous	-
3	2311062		Shield, Heater (2)		Appelez-nous	-
5	2311019		Cover, Unit Compartment		Appelez-nous	-
7	2311016		Hinge Asm, Bottom		Appelez-nous	-
9	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
11	3192294		Screw		Appelez-nous	-
12	8533833		Screw (5)		Appelez-nous	-
13	8534097		Screw (4)				$ 7.90
18	2311015		Hinge Asm, Top		Appelez-nous	-
19	WPW10329686		Closer, Door   (Replaces: 2155311)			Immediately	$ 5.90
20	WPW10191429		Light Socket   (Replaces: 2223857)				$ 8.80
22	2311017		Cover, Light		Appelez-nous	-
23	WP548049		Light Bulb   (Replaces: 547225)				$ 90.67
24	2311053		Panel, Unit		Appelez-nous	-
25	2303615		Leveling Pad (4)		Appelez-nous	-
26	2303721		Knob, Thermostat		Appelez-nous	-
27	2311054		Panel, Evaporator		Appelez-nous	-
