SELECT A DIAGRAM
01 - Cabinet Parts

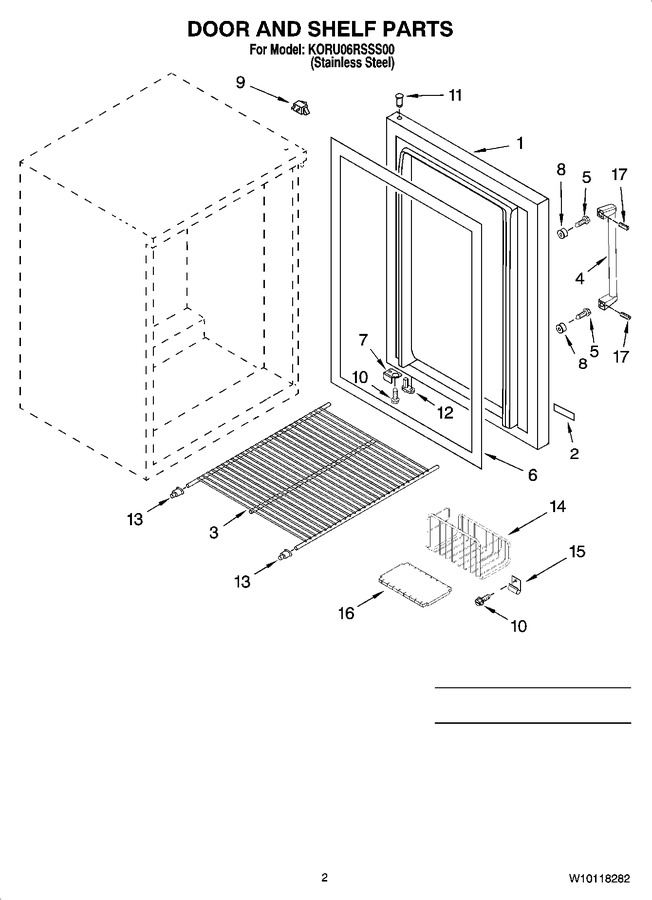

02 - Door And Shelf Parts
03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2965118 | Door Assembly (includes Gasket) |
|
- | |||||
| 2 | 2319107 | Nameplate |
|
- | |||||
| 3 | 2311014AS | Shelf, Wire (2) |
|
- | |||||
| 4 | 2319124 | Handle, Door Assy |
|
- | |||||
| 5 | WP488163 | Screw, (Replaces: 488163) |
|
$ 7.92 | |||||
| 6 | 2311057 | Gasket, Door |
|
- | |||||
| 7 | 2311061 | Bracket, Door Stop |
|
- | |||||
| 8 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 9 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 40.09 | |||||
| 10 | 8533833 | Screw |
|
- | |||||
| 11 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 13 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.70 | ||||
| 14 | 2311003AS | Basket, Door (2) |
|
- | |||||
| 15 | 2311001 | Clip, Basket Mounting (8) |
|
- | |||||
| 16 | 2311051 | Mat, Door Basket (2) |
|
- | |||||
| 17 | 8171420 | Cleaner, Stainless Steel (12 Oz.) |
|
- | |||||
| 17 | 4396337 | Caster Kit (4) |
|
- | |||||
| 17 | W11366418 | Screw, Set (Replaces: W10114271) |
|
Immediately | $ 15.79 |
