01 - Cabinet Parts
02 - Door And Shelf Parts

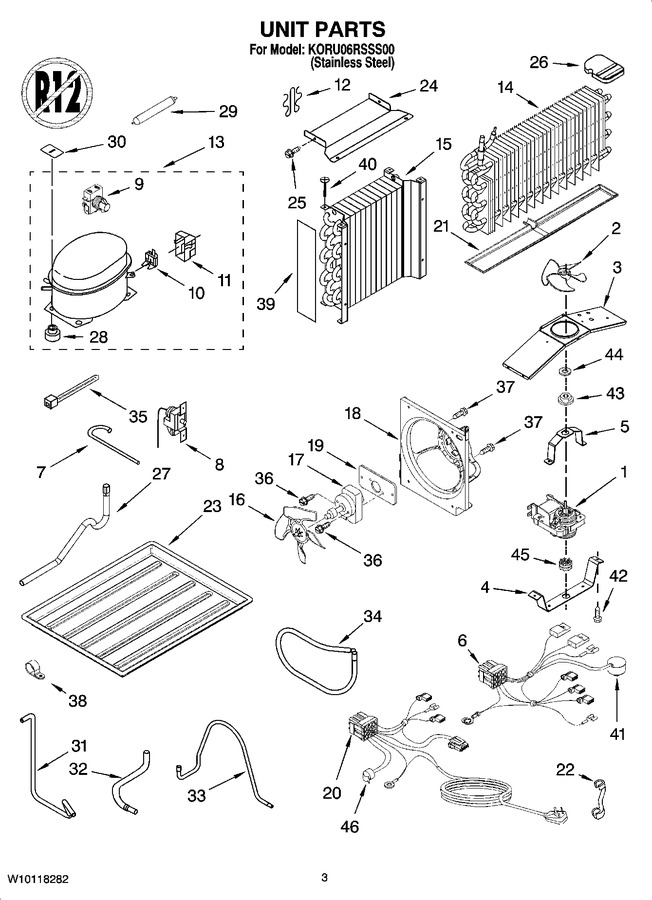

03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10189703 | Motor, Evap Fan (Replaces: 2188848) |
|
Immediately | $ 70.17 | ||||
| 2 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 3 | 2319130 | Panel, Evap Fan |
|
- | |||||
| 4 | 2303629 | Bracket, Mounting |
|
- | |||||
| 5 | 2214979 | Bracket, Front |
|
$ 56.05 | |||||
| 6 | 2187957 | Wire Harness, Evap Fan (includes 41) |
|
- | |||||
| 7 | WP2196003 | Tube, Barrier (Replaces: 2303751) |
|
$ 8.35 | |||||
| 8 | 2303662 | Thermostat |
|
- | |||||
| 9 | 2303745 | Relay, Starting |
|
- | |||||
| 10 | 2303746 | Overload |
|
- | |||||
| 11 | WP2162358 | Cover, Terminal (Replaces: 2208371) |
|
$ 95.29 | |||||
| 12 | 2163787 | Clip, Compressor |
|
$ 7.83 | |||||
| 13 | 2303680 | Compressor (includes 9, 10, 11 & 28) |
|
- | |||||
| 14 | 2319104 | Evaporator |
|
- | |||||
| 15 | WP2303647 | Condenser Asm (Replaces: 2303647) |
|
$ 302.54 | |||||
| 16 | W11458267 | Blade, Fan (condenser) (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 17 | W10124096 | Motor, Evap Fan (Replaces: 2188729) |
|
Immediately | $ 112.20 | ||||
| 18 | 2303740 | Bracket, Fan Mounting |
|
- | |||||
| 19 | 2301979 | Plate, Mounting |
|
$ 94.77 | |||||
| 20 | 2310035 | Wire Harness, Unit (includes 38) |
|
- | |||||
| 21 | 2303618 | Drain Pan, Evaporator |
|
- | |||||
| 22 | 9872015 | Strain Relief |
|
- | |||||
| 23 | 2311063 | Drain Pan |
|
- | |||||
| 24 | 2311058 | Cover, Condenser Fan |
|
- | |||||
| 25 | 8533833 | Screw |
|
- | |||||
| 26 | 2201185 | Support Block |
|
$ 8.21 | |||||
| 27 | 2303782 | Tube, Defrost Drain |
|
- | |||||
| 28 | WP2163786 | Grommet (Replaces: 2163786) |
|
$ 8.36 | |||||
| 29 | W10843121 | Drier Assembly (Replaces: 2319825) |
|
Immediately | $ 57.13 | ||||
| 30 | 2311056 | Washer (4) |
|
- | |||||
| 31 | 2303630 | Tube, Discharge |
|
- | |||||
| 32 | 2155648 | Tube, Process |
|
- | |||||
| 33 | 2303634 | Tube, Condenser Out |
|
- | |||||
| 34 | 2303632 | Tube, Suction Lower |
|
- | |||||
| 35 | WP2205813 | Strap (Replaces: 2205813) |
|
$ 8.11 | |||||
| 36 | 8281197 | Screw |
|
- | |||||
| 37 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 7.55 | ||||
| 38 | 7111P002-60 | Clamp, Cord (Replaces: 2303763) |
|
- | |||||
| 39 | 2303783 | Shield, Bi-metal |
|
- | |||||
| 40 | 2262032 | Clip, Tree (2) |
|
- | |||||
| 41 | 2303775 | Bi-metal, Defrost |
|
- | |||||
| 42 | 8534048 | Screw (2) |
|
- | |||||
| 43 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 44 | 2006252 | Washer (2) |
|
- | |||||
| 45 | 531933 | Grommet (2) |
|
$ 5.70 | |||||
| 46 | 2254101 | Bi-metal, Liner Heater |
|
- |
