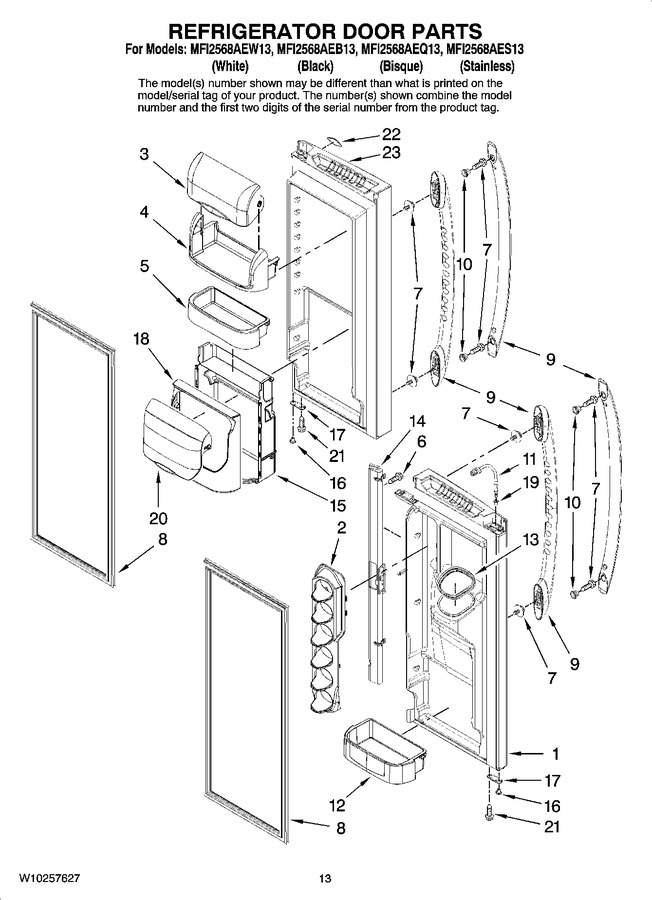

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10162822 | Door, Left (black) |
|
- | |||||
| 1 | W10164403 | Door, Left (bisque) |
|
- | |||||
| 1 | W10162823 | Door, Left (stainless) |
|
- | |||||
| 1 | W10162821 | Door, Left (white) |
|
- | |||||
| 2 | 67006311 | Dispenser, Can |
|
$ 36.65 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 67003637) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67006313 | Bin, Shelf (chiller Top) (Replaces: 67006313) |
|
Immediately | $ 84.62 | ||||
| 6 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 7 | WP3387230 | Screw, Handle (stainless Model) (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 7 | WP12992902 | Screw, Handle (white, Black And Bisque Models) (Replaces: 12992902) |
|
$ 11.91 | |||||
| 8 | W11396037 | Gasket, Door (white) (Replaces: W10162893) |
|
$ 312.66 | |||||
| 8 | W11378944 | Gasket, Door (black) (Replaces: W10162891) |
|
Immediately | $ 187.59 | ||||
| 9 | W11690159 | Handle, Door (stainless) (Replaces: W10136871) |
|
$ 173.76 | |||||
| 9 | W10119653 | Handle, Door (black) |
|
$ 76.38 | |||||
| 9 | WPW10119651 | Handle, Door (white) (Replaces: W10119651) |
|
$ 210.08 | |||||
| 9 | W10119652 | Handle, Door (bisque) |
|
- | |||||
| 10 | WP67006113 | Mount, Handle (stainless Model) (Replaces: 67006113) |
|
Immediately | $ 12.56 | ||||
| 11 | 12962106 | Waterline, Door |
|
$ 133.09 | |||||
| 12 | 67006310 | Bin, Shelf (gallon) |
|
$ 75.68 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: 67007108) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722813W | Mullion, Door (bisque) (Replaces: W10164406) |
|
$ 341.27 | |||||
| 14 | WPW10151713 | Mullion, Door (black) (Replaces: W10164405) |
|
$ 342.08 | |||||
| 14 | WP12722813W | Mullion, Door (white) (Replaces: W10164404) |
|
$ 341.27 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 67006315) |
|
$ 269.63 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 67003638) |
|
Immediately | $ 8.15 | ||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 90.32 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 67007011) |
|
Immediately | $ 14.75 | ||||
| 17 | 12968202Q | Stop, Door (bisque) |
|
- | |||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 67006314) |
|
$ 269.63 | |||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) (Replaces: 67005954) |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 67006312) |
|
Immediately | $ 86.29 | ||||
| 21 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 22 | 2324038 | Nameplate (Replaces: 67006439) |
|
$ 71.59 | |||||
| 23 | W10160129 | Door, Right (stainless) |
|
- | |||||
| 23 | W10162842 | Door, Right (white) |
|
- | |||||
| 23 | W10162841 | Door, Right (black) |
|
- | |||||
| 23 | W10164407 | Door, Right (bisque) |
|
- |
