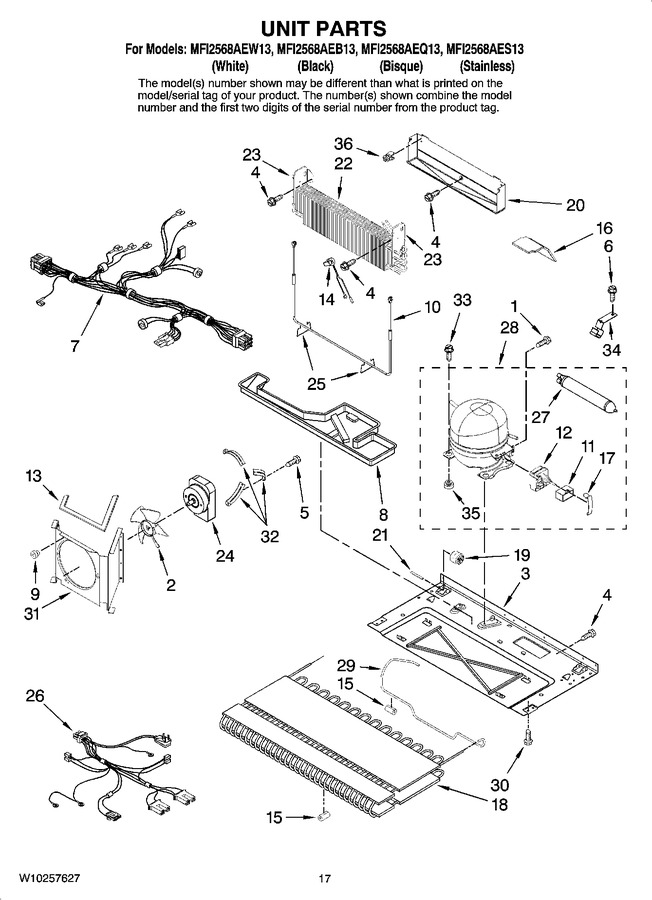

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw (Replaces: 67006433) |
|
$ 7.32 | |||||
| 2 | W10156818 | Blade, Fan |
|
Immediately | $ 62.11 | ||||
| 3 | 12457108 | Basepan |
|
$ 93.58 | |||||
| 4 | 67006425 | Screw |
|
Immediately | $ 6.95 | ||||
| 5 | WP67004954 | Screw (3) (Replaces: 67004954) |
|
$ 7.79 | |||||
| 6 | WP33001882 | Screw, Clip (Replaces: 67006737) |
|
$ 79.72 | |||||
| 7 | W10850438 | Harness, Evap Heater (Replaces: W10119239) |
|
Immediately | $ 306.39 | ||||
| 8 | WP12579803 | Pan, Drain (Replaces: 67007175) |
|
$ 245.45 | |||||
| 9 | 61004743 | Grommet (3) |
|
$ 5.51 | |||||
| 10 | W10162932 | Heater, Defrost |
|
- | |||||
| 11 | W10613606 | Capacitor (Replaces: 67005562) |
|
Immediately | $ 86.59 | ||||
| 12 | W10613606 | Relay Assy. (incl. Capacitor) (Replaces: 67005560) |
|
Immediately | $ 86.59 | ||||
| 13 | WP854334 | Seal, Condenser Shroud (Replaces: 61003210) |
|
$ 13.28 | |||||
| 14 | WP67006387 | Thermostat, Defrost (Replaces: 67006387) |
|
Immediately | $ 117.68 | ||||
| 15 | 67005680 | Grommet (7) |
|
$ 21.05 | |||||
| 16 | 12820504 | Pad-acoustic |
|
$ 52.08 | |||||
| 17 | 67007052 | Clip, Capacitor |
|
- | |||||
| 18 | WP67006131 | Condenser (Replaces: 67006131) |
|
$ 366.74 | |||||
| 19 | WP67005149 | Roller (2) (Replaces: 67005149) |
|
Immediately | $ 22.02 | ||||
| 20 | W11547653 | Tray, Drip (Replaces: 12225403WD) |
|
$ 54.30 | |||||
| 21 | 67006434 | Axle (2) |
|
Immediately | $ 7.52 | ||||
| 22 | 12002730 | Evaporator (Replaces: W10162998) |
|
$ 346.32 | |||||
| 23 | W10162951 | Dam (right Side) |
|
- | |||||
| 23 | W10162962 | Dam (left Side) |
|
- | |||||
| 24 | W11613295 | Motor, Fan (Replaces: 67004432) |
|
Immediately | $ 136.84 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 141.12 | |||||
| 26 | 13060202 | Harness, Unit With Power Cord |
|
$ 96.21 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10160407 | Compressor (includes Items 11, 12, 17, 27, & 35) (Replaces: 67005565) |
|
$ 599.92 | |||||
| 29 | WP12866903 | Tube, Discharge (Replaces: 12866903) |
|
Immediately | $ 133.53 | ||||
| 30 | 12992101 | Screw (Replaces: 67006573) |
|
- | |||||
| 31 | W10162963 | Shroud |
|
- | |||||
| 32 | WP67004953 | Bracket, Fan Motor (Replaces: 67004953) |
|
$ 68.83 | |||||
| 33 | 12846902 | Screw (3) |
|
$ 12.99 | |||||
| 34 | 10547003 | Clip, Drier |
|
- | |||||
| 35 | WPW10169124 | Grommet (4) (Replaces: 67003493) |
|
Immediately | $ 7.19 | ||||
| 36 | 10623002 | Clip, Evaporator |
|
$ 11.53 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 21.64 |
