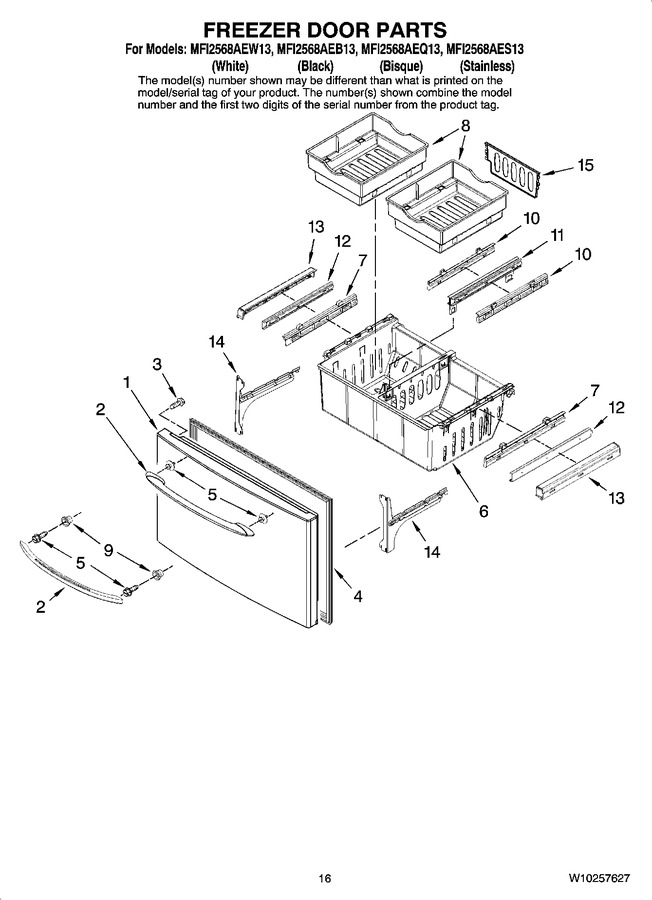

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10162862 | Freezer Door (black) |
|
- | |||||
| 1 | W10164408 | Freezer Door (bisque) |
|
- | |||||
| 1 | W10162858 | Freezer Door (stainless) |
|
- | |||||
| 1 | W10162860 | Freezer Door (white) |
|
- | |||||
| 2 | W10119657 | Handle, Door (white) |
|
$ 78.52 | |||||
| 2 | W10119659 | Handle, Door (black) |
|
- | |||||
| 2 | W10119658 | Handle, Door (bisque) |
|
- | |||||
| 2 | WPW10138763 | Handle, Door (stainless) (Replaces: W10138763) |
|
$ 266.54 | |||||
| 3 | 12991101 | Screw (Replaces: 67006408) |
|
$ 12.83 | |||||
| 4 | WPW10436253 | Gasket, Door (black) (Replaces: W10162895) |
|
$ 343.70 | |||||
| 4 | WPW10443321 | Gasket, Door (white) (Replaces: W10162897) |
|
$ 342.70 | |||||
| 5 | WP12992902 | Screw, Handle (white, Black And Bisque Models) (Replaces: 12992902) |
|
$ 11.07 | |||||
| 5 | WP3387230 | Screw, Handle (stainless Model) (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 6 | 67006366 | Bin, Lower |
|
$ 69.67 | |||||
| 7 | W10166742 | Adapter, Bin (outer) (Replaces: 67006370) |
|
$ 93.45 | |||||
| 8 | WP12924903 | Bin, Upper (Replaces: W10166237) |
|
$ 126.00 | |||||
| 9 | WP67006113 | Mount, Handle (stainless Model) (Replaces: 67006113) |
|
Immediately | $ 11.96 | ||||
| 10 | 12925404SP | Adapter, Bin (inner) (Replaces: W10163002) |
|
$ 43.16 | |||||
| 11 | WPW10235357 | Bracket/glide Assembly (Replaces: 67006372) |
|
Immediately | $ 315.22 | ||||
| 12 | WPW10235367 | Glide, Upper (Replaces: 67006369) |
|
$ 298.50 | |||||
| 13 | W10826788 | Retainer, Glide (left) (Replaces: 67006367) |
|
$ 54.76 | |||||
| 13 | WP67006368 | Retainer, Glide (right) (Replaces: 67006368) |
|
$ 183.71 | |||||
| 14 | WPW10330991 | Bracket, Door Slide (left) (Replaces: W10122147) |
|
$ 156.49 | |||||
| 14 | WPW10330993 | Bracket, Door Slide (right) (Replaces: W10122148) |
|
$ 158.18 | |||||
| 15 | 67006373 | Divider, Upper Bin |
|
- |
