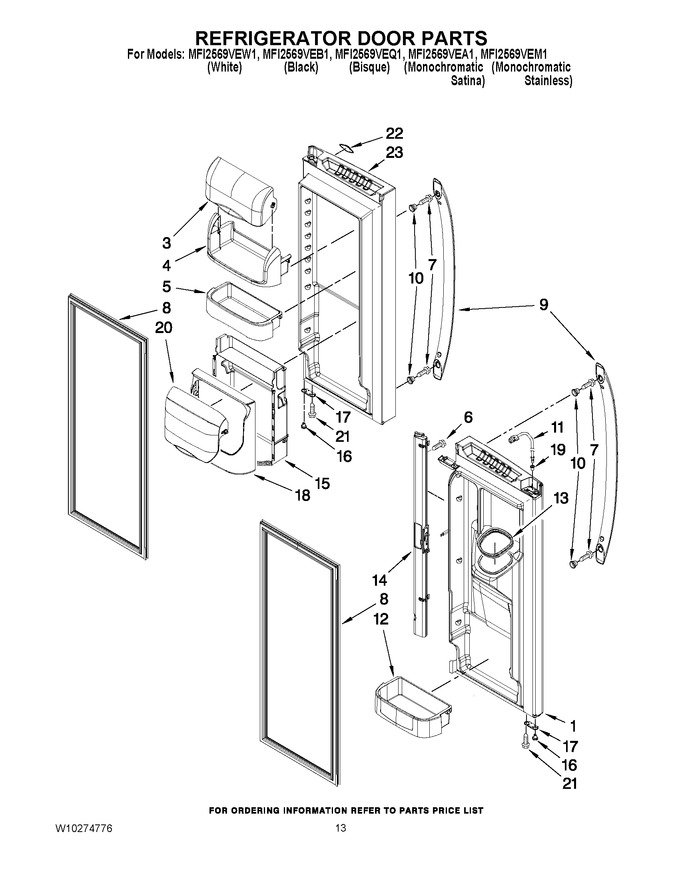

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12978031LQ		Door, Left (satina)		Appelez-nous	-
1	12978031SQ		Door, Left (mono Stainless)				$ 457.11
1	W10174213		Door, Left (white)		Appelez-nous	-
1	W10173928		Door, Left (black)				$ 520.64
1	W10174149		Door, Left (bisque)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WP67006313		Bin, Shelf (chiller Top)   (Replaces: 12945801SP)			Immediately	$ 80.59
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
7	67006901		Screw, Handle   (Replaces: 12991703)			Immediately	$ 8.02
8	W10830055		Gasket, Door (right Door) (apollo Grey)   (Replaces: W10163991)			Immediately	$ 229.10
8	W11378944		Gasket, Door (right Door) (black)   (Replaces: W10163898)			Immediately	$ 187.59
8	W11396037		Gasket, Door (right Door) (white)   (Replaces: W10163896)				$ 297.77
9	W10197298		Door Handle (black)		Appelez-nous	-
9	67006982		Door Handle (bisque)   (Replaces: W10197297)				$ 188.95
9	W11690159		Door Handle (stainless)   (Replaces: W10136871)				$ 165.49
9	13004701L		Door Handle (antique Pewter)		Appelez-nous	-
9	13004701W		Door Handle (white)   (Replaces: W10197296)				$ 184.73
10	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.96
11	12962106		Waterline, Door				$ 126.75
12	WP12840004		Bin, Shelf (gallon)   (Replaces: 12840004)				$ 90.37
13	WPW10287601		Seal, Ice Chute   (Replaces: 12999902)			Immediately	$ 31.20
14	WP12722813W		Mullion, Door (bisque)   (Replaces: 12722813Q)				$ 325.02
14	WP12722813AP		Mullion, Door (apollo Grey)   (Replaces: 12722813AP)				$ 324.66
14	WP12722813W		Mullion, Door (white)   (Replaces: 12722813W)				$ 325.02
14	WPW10151713		Mullion, Door (black)   (Replaces: 12722813B)				$ 325.79
15	W11266639		Frame, Chiller (rear)   (Replaces: 12945601SP)				$ 256.79
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
16	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.76
16	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
17	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 14.72
17	12968202W		Stop, Door (white)				$ 65.99
17	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 14.05
17	12968202Q		Stop, Door (bisque)		Appelez-nous	-
18	W11266639		Frame, Chiller (front)   (Replaces: 12945501SP)				$ 256.79
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
20	WP67006312		Door, Chiller   (Replaces: 12945701SP)			Immediately	$ 82.18
21	WP98165		Screw   (Replaces: 12990521)				$ 8.00
22	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 67.14
23	12978030SQ		Door, Right (mono Stainless)				$ 804.24
23	12978030LQ		Door, Right (satina)		Appelez-nous	-
23	W10160126		Door, Right (bisque)		Appelez-nous	-
23	W10160123		Door, Right (black)		Appelez-nous	-
23	W10160132		Door, Right (white)		Appelez-nous	-
