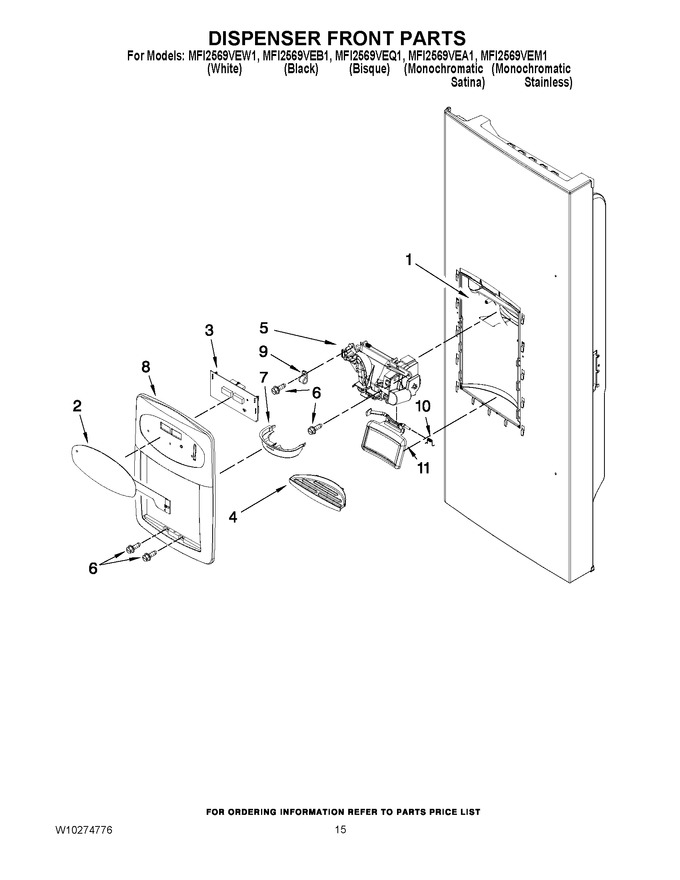

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10776981		Keyboard (black)   (Replaces: W10164469)				$ 323.39
2	W10776982		Keyboard (white)   (Replaces: W10159999)				$ 323.39
2	W10164468		Keyboard (bisque)		Appelez-nous	-
2	W10164470		Keyboard (silver)		Appelez-nous	-
2	W10740217		Keyboard (stainless)   (Replaces: W10164471)			Immediately	$ 236.00
3	67006294		Board, L.v.   (Replaces: 12939601)				$ 257.17
4	W10185235		Sump, Dispenser (midnight Grey)				$ 28.47
4	W10164979		Sump, Dispenser (black)				$ 39.41
4	W10142274		Sump, Dispenser (white)				$ 57.88
4	W10164981		Sump, Dispenser (bisque)				$ 64.46
5	WP13005703W		Chute, Ext/yoke (includes Switch) (bisque)   (Replaces: 13005703Q)				$ 307.71
5	WP13005703W		Chute, Ext/yoke (includes Switch) (white)   (Replaces: 13005703W)				$ 307.71
5	WP13005703B		Chute, Ext/yoke (includes Switch) (black)   (Replaces: 13005703B)				$ 309.17
5	WP13005705		Chute, Ext/yoke (includes Switch) (midnight Grey)   (Replaces: 13005705)			Immediately	$ 329.03
6	67006425		Screw (3)   (Replaces: 12990513)			Immediately	$ 6.95
7	67006295		Ring, Target   (Replaces: 12958301)				$ 52.92
8	W10164983		Facade, Dispenser (bisque)				$ 94.83
8	W10172895		Facade, Dispenser (satina)		Appelez-nous	-
8	W10142272		Facade, Dispenser (white)				$ 253.60
8	WPW10164982		Facade, Dispenser (black)   (Replaces: W10164982)				$ 223.28
8	WPW10310688		Facade, Dispenser (stainless)   (Replaces: W10142273)				$ 221.08
9	M0108106		Clamp, Tube				$ 66.62
10	W10170831		Yoke/pad Assy. (white)				$ 79.81
10	W10170833		Yoke Pad Assy. (biscuit)		Appelez-nous	-
10	WPW10185233		Yoke Pad Assy. (midnight Grey)   (Replaces: W10185233)				$ 81.36
10	W10170832		Yoke/pad Assy. (black)				$ 81.12
11	WP12565502		Spring   (Replaces: 12565502)				$ 7.81
