SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts

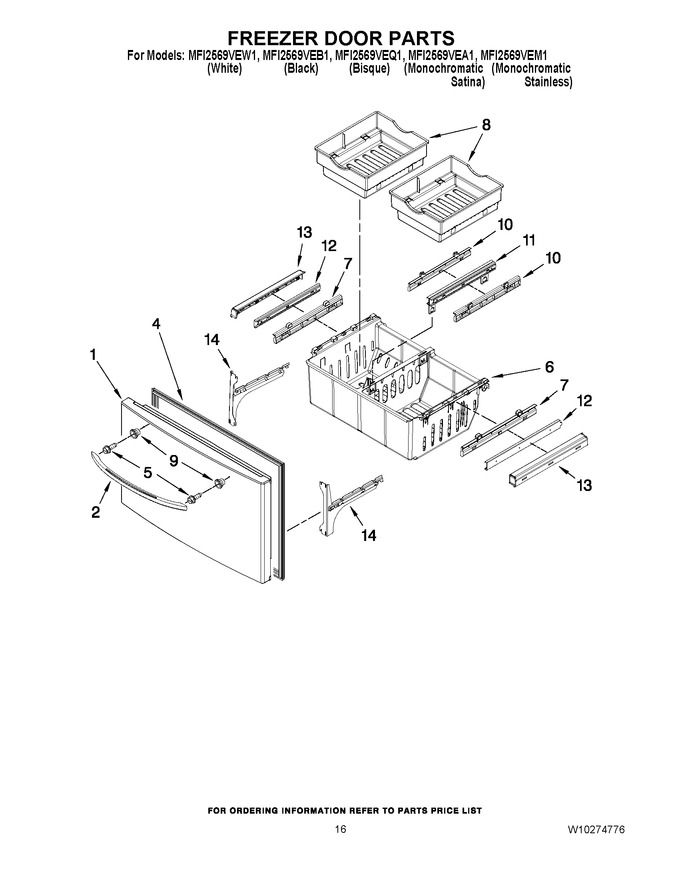

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977816SQ		Freezer Door (mono Stainless)				$ 574.32
1	12977863WQ		Freezer Door (white)   (Replaces: W10174214)				$ 847.44
1	W10173929		Freezer Door (black)		Appelez-nous	-
1	W10174150		Freezer Door (bisque)		Appelez-nous	-
1	12977816LQ		Freezer Door (satina)		Appelez-nous	-
2	13004702L		Handle, Door (antique Pewter)		Appelez-nous	-
2	W10197301		Handle, Door (white)		Appelez-nous	-
2	W10197303		Handle, Door (black)		Appelez-nous	-
2	W10197302		Handle, Door (bisque)		Appelez-nous	-
2	WPW10138763		Handle, Door (stainless)   (Replaces: W10138763)				$ 266.54
4	WPW10443321		Gasket, Door (white)   (Replaces: W10164043)				$ 342.70
4	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 308.19
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 343.70
5	67006901		Screw, Handle   (Replaces: 12991703)			Immediately	$ 8.02
6	12924801SP		Bin, Lower		Appelez-nous	-
7	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 93.45
8	N/P		Bin, Upper		Appelez-nous	-
9	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.96
10	12925404SP		Adapter, Bin (inner)				$ 43.16
11	WPW10235357		Bracket/glide Assembly   (Replaces: 12969701)			Immediately	$ 315.22
12	WPW10235367		Glide, Upper   (Replaces: 12925101)				$ 298.50
13	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 54.76
13	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 183.71
14	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10122148)				$ 158.18
14	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10122147)				$ 156.49
