01 - Front Cover

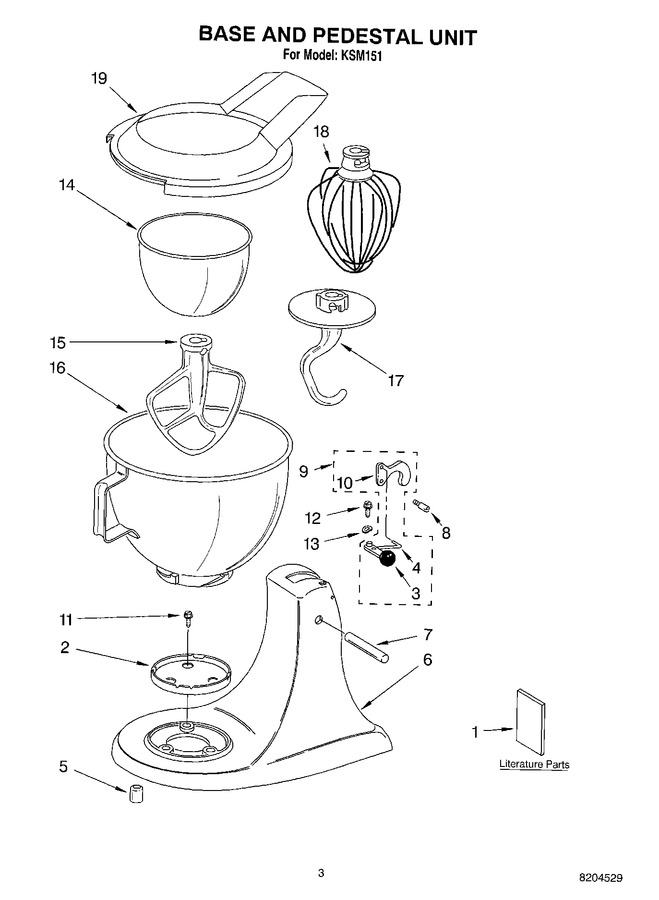

03 - Base And Pedestal Unit
04 - Case, Gearing And Planetary Unit
05 - Motor And Control
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8204529 | Literature Parts (repair Parts List) |
|
- | |||||
| 1 | LIT9706634 | Literature Parts (use And Care Guide) |
|
- | |||||
| 2 | WPW10191926 | Screw Cap Kit (Replaces: 4163032) |
|
Immediately | $ 19.03 | ||||
| 3 | WP9709280 | Lever, Latch (Replaces: 4176024) |
|
Immediately | $ 4.62 | ||||
| 4 | W11232016 | Link, Latch (Replaces: 24450) |
|
$ 7.83 | |||||
| 5 | WP9709707 | Foot, Base (Replaces: 115792) |
|
Immediately | $ 4.42 | ||||
| 6 | 9706682 | Pedestal-metalic Chrome |
|
$ 95.12 | |||||
| 6 | 9706683 | Pedestal-black Chrome |
|
- | |||||
| 7 | WP16910 | Pin, Hinge (Replaces: 16910) |
|
Immediately | $ 4.87 | ||||
| 8 | 103993 | Screw, Latch Bearing |
|
$ 24.95 | |||||
| 9 | WP24452 | Latch, Link & Lever (Replaces: 24452) |
|
Immediately | $ 8.06 | ||||
| 10 | W11246352 | Latch (Replaces: 240494-2) |
|
$ 8.57 | |||||
| 11 | W11544572 | Screw, 10-24 X 1/2`` (Replaces: 3400020) |
|
$ 8.41 | |||||
| 12 | 6011-006971 | Screw, Pivot (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 13 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 14 | 3179861 | Bowl (3 Qt) |
|
- | |||||
| 15 | 9707426 | Beater, Flat |
|
- | |||||
| 16 | W11324096 | Bowl & Base (5 Qt) (Replaces: 9706619) |
|
$ 94.62 | |||||
| 17 | WPW10674618 | Dough Hook (Replaces: 3183588) |
|
Immediately | $ 31.90 | ||||
| 18 | WP9704329 | Wire Whip (Replaces: 9704329) |
|
Immediately | $ 29.90 | ||||
| 19 | W11312468 | Pouring Shield (Replaces: 9706633) |
|
$ 43.26 |
