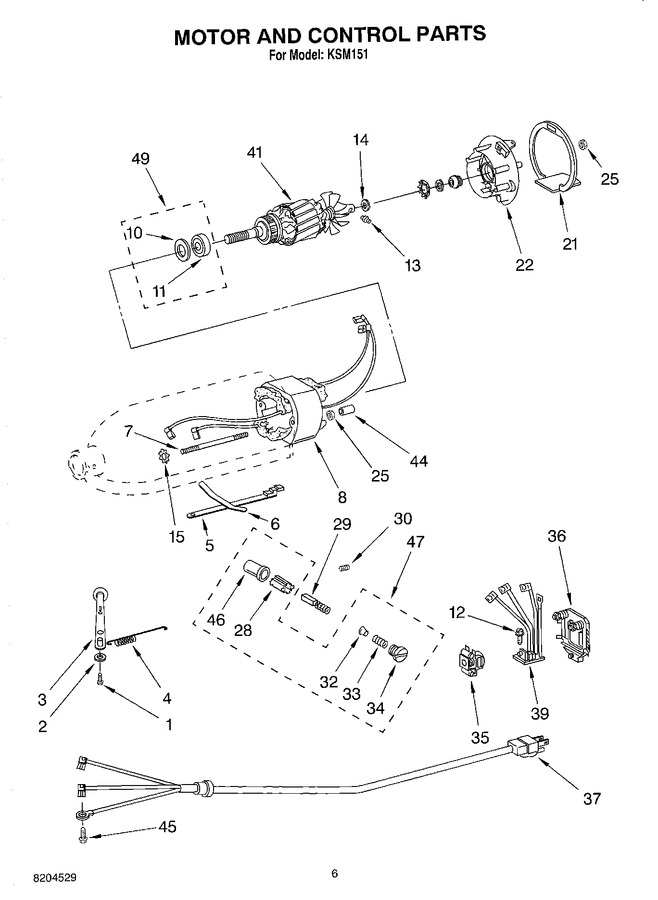

05 - Motor And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	6011-006971		Screw, Pivot   (Replaces: 110679)			Immediately	$ 3.59
2	WP116241		Washer, Spring   (Replaces: 116241)				$ 5.19
3	WP9709276		Switch Lever And Stud   (Replaces: 3184193)			Immediately	$ 5.32
4	WP3183680		Spring, Control Plate   (Replaces: 3183680)				$ 4.79
5	W11557271		Speed Link & Cam   (Replaces: 3184176)			Immediately	$ 8.47
6	WP240205		Spring, Flat   (Replaces: 240205)				$ 4.99
7	W10851015		Screw, Stator   (Replaces: 240769)				$ 4.30
8	W10870869		Field Assembly (must Use With Item No. 41) 115 Volts   (Replaces: 9702695)			Immediately	$ 56.10
10	WP9704324		Washer, Ball Bearing (front)   (Replaces: 9704324)				$ 4.72
11	W11133634		Ball Bearing   (Replaces: 4159001)				$ 71.22
12	W11084238		Screw, Self Tapping 4-40 X 5/16`` Phil. Pan Hd. Type Tt   (Replaces: 3400402)		Appelez-nous	-
13	WP16998		Stud, Governor Drive   (Replaces: 16998)				$ 4.82
14	W11233557		Washer, Spacing   (Replaces: 3180162)				$ 8.13
15	W11170663		Washer   (Replaces: 3400900)				$ 4.54
21	WP240775-1		Seal, End   (Replaces: 240775-1)			Immediately	$ 5.12
22	WP3180526		Bracket, Bearing Asm.   (Replaces: 3180526)				$ 20.80
25	4159074		Nut, Machine Hex (10-24)		Appelez-nous	-
28	W11656718		Insert, Brush Holder   (Replaces: 240680)				$ 5.22
29	WPW10380496		Brush, Carbon   (Replaces: 3184115)			Immediately	$ 4.25
30	W11176201		Set Screw, 10-24 X 1/4`` Hdls. Cup Pt   (Replaces: 3400019)				$ 4.75
32	WP116286		Cap, Spring Seat   (Replaces: 116286)				$ 4.77
33	WP116287		Spring, Cap   (Replaces: 116287)				$ 4.84
34	WP3184212		Cap, Brush Holder   (Replaces: 3184212)			Immediately	$ 4.79
35	WPW10330804		Governor Assembly   (Replaces: 17830)			Immediately	$ 16.39
36	WPW10119326		Control Plate Assembly   (Replaces: 240904-2)			Immediately	$ 17.43
37	W11545825		Power Cord   (Replaces: 9701026)			Immediately	$ 12.72
39	WPW10325124		Phase Control Board   (Replaces: 9706595)			Immediately	$ 17.30
41	W11133634		Armature & Bearing Incls. Illus 11) (must Use With Illus. 8)   (Replaces: 241991-1)				$ 71.22
44	W11210996		Sleeve, Motor Stud   (Replaces: 4162634)		Appelez-nous	-
45	3184609		Screw, Self Tapping (10-32 X 1/4``) Phil. Pan Hd. Type Tt		Appelez-nous	-
46	WP3179908		Housing, Brush Holder   (Replaces: 3179908)				$ 4.35
47	4162546		Brush Holder (incls. Illus. 28, 32, 33, 34, & 46)				$ 23.37
49	W10802058		Bowl, Satin Stainless   (Replaces: 4162160)				$ 103.12
49	4164803		Sausage Stuffer, Kit, Ssa		Appelez-nous	-
49	3177924		Bowl Cover, Plastic Non-sealing		Appelez-nous	-
49	W10802058		Bowl, Stainless With Handle   (Replaces: 4163337)				$ 103.12
49	3180262		Bowl, 3 Qt.				$ 68.75
49	4176025		Ball Bearing And Washer Kit		Appelez-nous	-
49	4164839		Speed Disc (service Tool)		Appelez-nous	-
49	W11200218		Grease, Planetary   (Replaces: 4160588)			Immediately	$ 86.08
49	4164778		Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs		Appelez-nous	-
49	4164749		Food Grinder (fg-a)		Appelez-nous	-
49	4164751		Grain Mill (gm-a)		Appelez-nous	-
49	4164768		Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a)		Appelez-nous	-
49	FVSP		Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp)   (Replaces: 4164775)				$ 117.81
49	RVSA		Rotor Slicer/shredder (with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin   (Replaces: 4164750)				$ 115.50
49	W11312468		Pouring Shield (kps2cl)   (Replaces: 9704568)				$ 43.26
49	4164824		Pasta Maker Plates Snpa		Appelez-nous	-
49	4164774		Fruit/vegetable Strainer And Food Grinder, Fvs/fga		Appelez-nous	-
49	3180617		Cover, Decorative (cotton Polyester)		Appelez-nous	-
49	4162838		Food Tray (ft)		Appelez-nous	-
49	4164748		Juicer, Je		Appelez-nous	-
49	4164747		Can Opener, Co		Appelez-nous	-
