SELECT A DIAGRAM

01 - Front Cover


03 - Base And Pedestal Unit

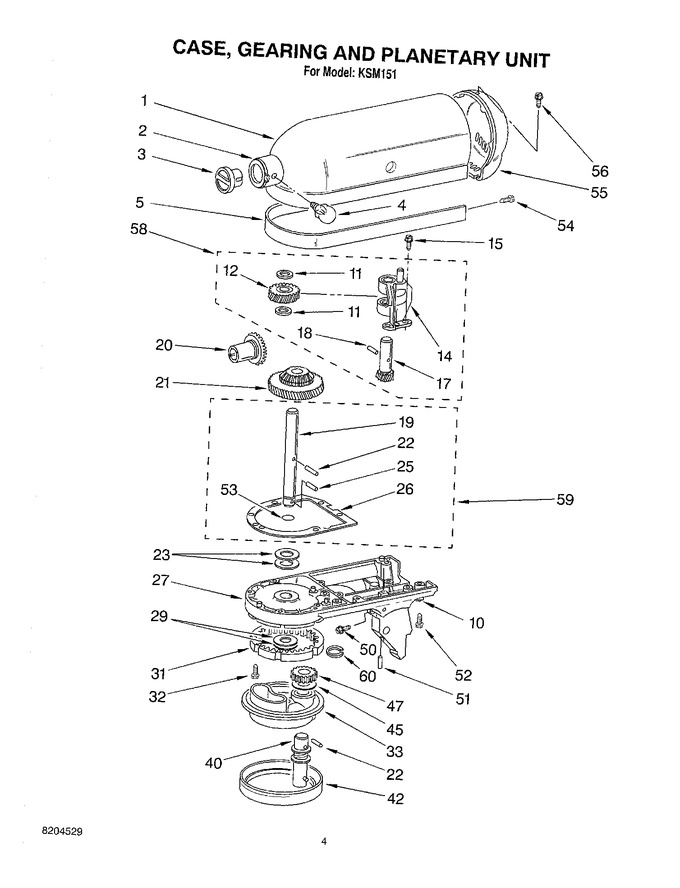

04 - Case, Gearing And Planetary Unit


05 - Motor And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9706679		Gearcase Motor Housing-black Chrome		Appelez-nous	-
1	9704025		Gearcase Motor Housing-metalic Chrome				$ 108.56
2	WP16897		Ring, Attachment Hub   (Replaces: 16897)			Immediately	$ 5.10
3	W11831059		Cap, Attachment Hub   (Replaces: 242765-2)			Immediately	$ 15.12
4	WP9709194		Thumb Screw   (Replaces: 240374)			Immediately	$ 20.14
5	9706661		Trim Band-black		Appelez-nous	-
10	WP8533914		Lock Washer, No.10 Light   (Replaces: 4159479)			Immediately	$ 4.72
11	WPW10323373		Washer, Fiber (black, Gray)   (Replaces: 3180161)			Immediately	$ 4.72
12	WPW10112253		Worm Gear (23t)   (Replaces: 4162897)			Immediately	$ 13.47
14	W11082541		Worm Gear Bracket And Bearing   (Replaces: 240308)				$ 14.78
15	W11097298		Screw And L.w. Assy. No.10-24 X 7/16`` Phil. Fil. Hd. (3)   (Replaces: 3400022)		Appelez-nous	-
17	WP240210-2		Shaft & Pinion (10t)   (Replaces: 240210-2)			Immediately	$ 11.88
18	WP9705444		Pin   (Replaces: 9705444)			Immediately	$ 4.84
19	WP240026		Shaft, Vertical Center   (Replaces: 240026)			Immediately	$ 9.14
20	W11192794		Gear, Attachment Hub Bevel (23t)   (Replaces: 9703907)			Immediately	$ 40.69
21	W11192794		Bevel Pinion (19t) & Center Gear (62t)   (Replaces: 9703905)			Immediately	$ 40.69
22	WP9707223		Pin (vertical Center Shaft)   (Replaces: 240018-1)			Immediately	$ 5.08
23	WPW10323378		Washer, Fiber (black, Gray)   (Replaces: 3180163)			Immediately	$ 10.83
25	WP4159133		Groov-pin, Type E, 5/32`` X 7/8``   (Replaces: 4159133)				$ 4.64
26	W11805888		Gasket, Transmission Case   (Replaces: 4162324)			Immediately	$ 46.84
27	9706664		Lower Gearcase-black Chrome		Appelez-nous	-
27	9706662		Lower Gearcase-metalic Chrome				$ 68.93
29	WPW10323378		Washer, Fiber (black, Gray)   (Replaces: 3180163)			Immediately	$ 10.83
31	W11340106		Gear, Internal (59t)   (Replaces: 9703904)				$ 18.56
32	VT9		Screw, Special (5)   (Replaces: 103994)				$ 37.35
33	9706671		Planetary-black Chrome		Appelez-nous	-
33	9706670		Planetary-metalic Chrome			Immediately	$ 45.31
40	WP243368		Agitator Shaft (includes Illus. 60)   (Replaces: 4176067)			Immediately	$ 17.29
42	WP240285		Ring, Planetary Drip   (Replaces: 240285)			Immediately	$ 9.06
45	3180160		Washer, Shim (.015`` Thk.) (.031`` Thk.)				$ 18.10
47	W11133645		Pinion, Gear (18t) (agitator Shaft)   (Replaces: 9703903)				$ 4.92
50	W11028216		Screw, Adjusting   (Replaces: 4160413)				$ 5.22
51	WP3400203		Set Screw, 1/4``- 28 X 3/8`` Hdls., Cup Pt.   (Replaces: 3400203)			Immediately	$ 5.04
52	WP3400025		Machine Screw, 10-24 X 1 Fil. Head   (Replaces: 3400025)				$ 4.62
53	WP67500-55		O-ring   (Replaces: 67500-55)			Immediately	$ 4.52
54	W10853069		Screw, Self Tapping 6-32 X 1/4`` Phil. Pan Hd. Type F   (Replaces: 4159430)				$ 4.32
55	9704029		End Cover-metalic Chrome		Appelez-nous	-
55	9706669		End Cover-black Chrome		Appelez-nous	-
56	WP241877		Screw, 6-32 X 3/8 Phil. Oval Hd.   (Replaces: 4162914)				$ 4.15
58	WP240309-2		Worm Gear Bracket And Gear (10 T & 23 T) (incls. Illus 11 Thru 14 17 & 18)   (Replaces: 240309-2)			Immediately	$ 39.53
59	4160474		Center Shaft & ``o`` Ring (incls. Illus. 19, 22, 25, 26, & 53)				$ 28.53
60	WP9703438		Ring   (Replaces: 9703438)			Immediately	$ 4.60
