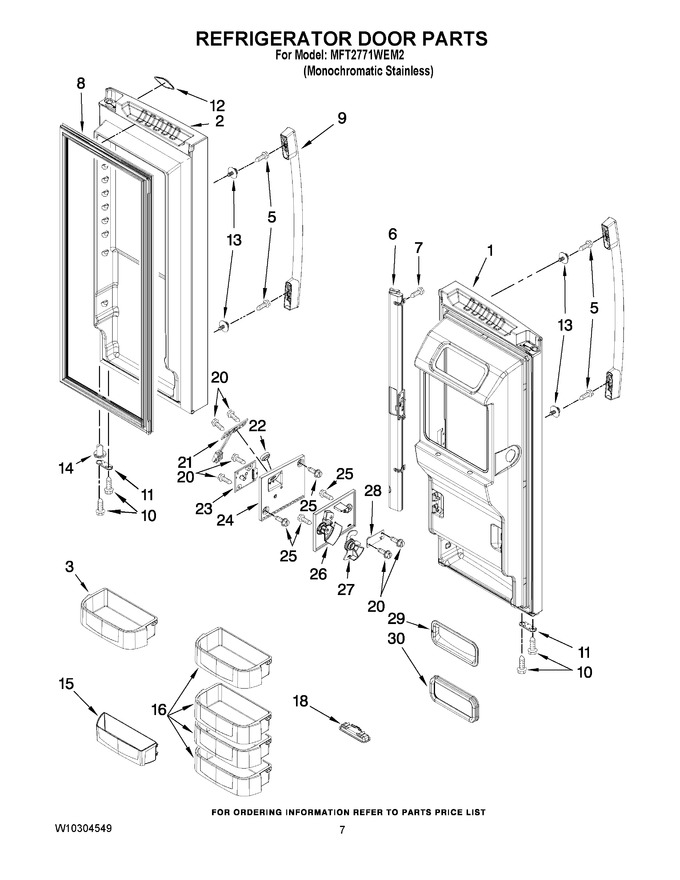

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13102611SQ Door, Left (apollo Grey) Appelez-nous -
2 13102606SQ Door, Right (apollo Grey) Special Order $ 623.93

3 W10237235 Bucket, Door Gallon (lh) Appelez-nous -
5 W10290759 Screw Special Order $ 5.83

6 WP12722815AP Mullion, Door (apollo Grey)   (Replaces: 12722815AP) Special Order $ 338.01

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

8 W10830055 Gasket, Door (apollo Grey)   (Replaces: W10163991) In-Stock Immediately $ 229.10

9 W10291144 Handle, Door (apollo Grey) Special Order $ 105.40

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

11 W11703060 Stop, Door (apollo Grey)   (Replaces: 12968202AP) Special Order $ 15.46

12 WPW10170766 Nameplate   (Replaces: W10170766) In-Stock Immediately $ 70.50

13 WP67006113 Mount, Handle   (Replaces: 13001201) In-Stock Immediately $ 12.56

14 WP12028505AP Closure, Door (apollo Grey)   (Replaces: 12028505AP) In-Stock Immediately $ 61.46

15 WPW10212139 Bucket, Small   (Replaces: W10212139) In-Stock Immediately $ 78.54

16 W10237237 Bucket, Door Gallon (rh) (without Gripper) Special Order $ 116.24

18 W10212141 Latch, Ice Bin Appelez-nous -
20 2006254 Screw   (Replaces: 12993001) Special Order $ 13.79

21 WPW10305123 Led, Ice Bin   (Replaces: W10305123) Special Order $ 197.33

22 W10225288 Lens, Ice Bin Led Appelez-nous -
23 W11813704 Board, Receiver   (Replaces: W10273549) In-Stock Immediately $ 328.97

24 W10251672 Cover, Receiver Special Order $ 35.70

25 WP3400065 Screw   (Replaces: 3400065) In-Stock Immediately $ 8.18

26 W10199834 Cover, Emitter Special Order $ 37.43

27 W10211511 Shutoff, Emitter Special Order $ 34.01

28 W10870822 Board, Emitter   (Replaces: W10180607) In-Stock Immediately $ 222.54

29 W10247763 Seal, Ice Door Special Order $ 33.55

30 W10247668 Gasket, Ice Chute Special Order $ 24.44
