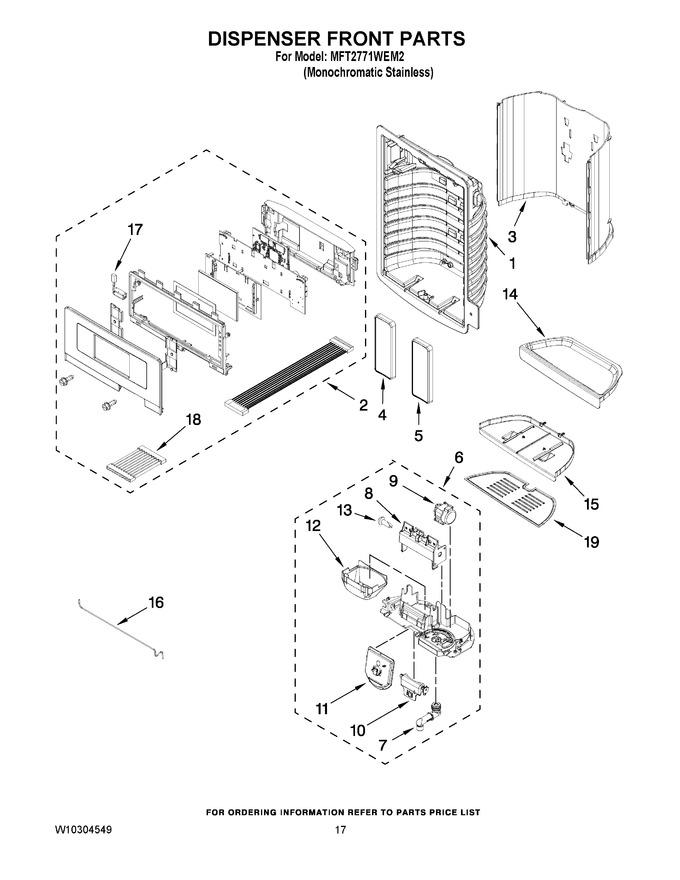

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10291957		Ui Assembly (apollo Grey)		Appelez-nous	-
3	W10305890		False Wall, Dispenser (apollo Grey)				$ 92.99
4	W10308362		Pad, Ice (nickel)				$ 130.67
5	W10307625		Pad, Water (nickel)		Appelez-nous	-
6	W10307070		Separator Assembly (apollo Grey)		Appelez-nous	-
7	W11227371		Spigot   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 104.67
11	W10346235		Door, Ice   (Replaces: W10174811)				$ 170.32
12	W10499850		Guide, Ice   (Replaces: W10174808)				$ 104.67
13	W10174818		Screw		Appelez-nous	-
14	WPW10305897		Tray, Dispenser (apollo Grey)   (Replaces: W10305897)				$ 84.81
15	WPW10267863		Slide, Tray Dispenser (apollo Grey)   (Replaces: W10267863)				$ 73.22
16	W10314372		Tube, Water (dispenser)				$ 54.47
17	W11290115		Led   (Replaces: W10238083)				$ 84.45
18	W10193350		Harness, Jumper				$ 56.57
19	W10215957		Grate, Drip Tray				$ 52.76
