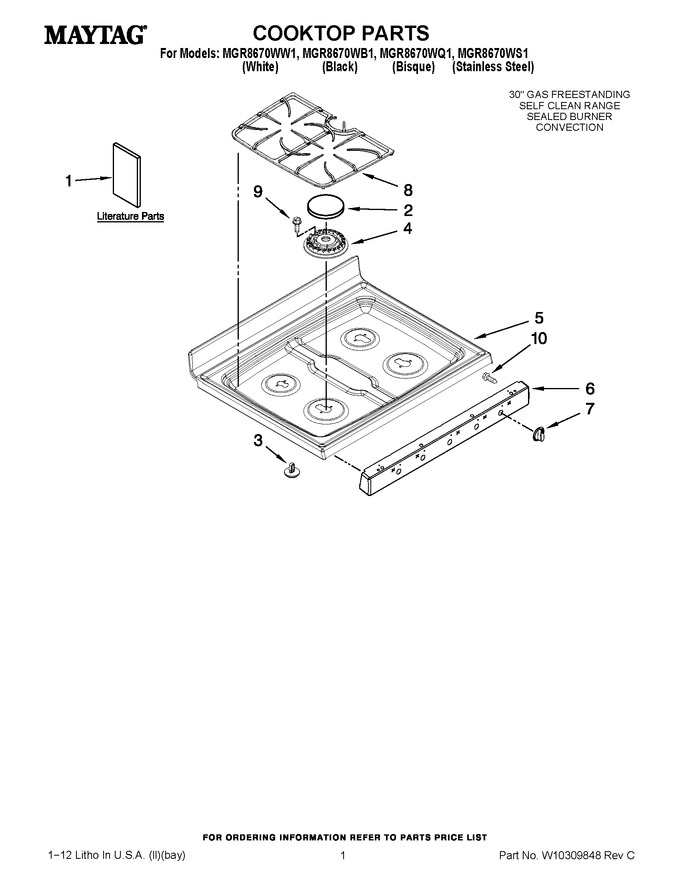

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10258096 | Installation Instructions |
|
- | |||||
| 1 | W10239463 | Owners Manual |
|
- | |||||
| 1 | W10239472 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10239473 | Wiring Diagram (french) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | WPW10183371 | Cap, Burner Left Front (black) (Replaces: W10183371) |
|
$ 108.68 | |||||
| 2 | WPW10183369 | Cap, Burner Center & Rr (black) (Replaces: W10183369) |
|
$ 68.37 | |||||
| 2 | WPW10183370 | Cap, Burner Left Rear (black) (Replaces: W10183370) |
|
$ 67.99 | |||||
| 2 | W10169974 | Cap, Burner Center & Rr (wetstone) |
|
$ 29.04 | |||||
| 2 | WPW10173832 | Cap, Burner Left Front (wetstone) (Replaces: W10173832) |
|
$ 79.28 | |||||
| 2 | WPW10169975 | Cap, Burner Left Rear (wetstone) (Replaces: W10169975) |
|
$ 70.50 | |||||
| 2 | W10169973 | Cap, Burner Right Front (wetstone) |
|
$ 102.63 | |||||
| 2 | WPW10183368 | Cap, Burner Right Front (black) (Replaces: W10183368) |
|
$ 89.47 | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 8.81 | |||||
| 4 | WPW10406243 | Burner (center) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 4 | WPW10406797 | Burner (lf) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 4 | WPW10406878 | Burner (rf) (Replaces: 8286183) |
|
$ 107.48 | |||||
| 4 | WPW10406283 | Burner (rr & Lr) (Replaces: W10194076) |
|
$ 78.02 | |||||
| 5 | W10225508 | Cooktop (white) |
|
- | |||||
| 5 | W10225510 | Cooktop (bisque) |
|
- | |||||
| 5 | W10225509 | Cooktop (black) |
|
- | |||||
| 6 | W10211380 | Panel, Manifold (white) |
|
$ 66.27 | |||||
| 6 | W10211381 | Panel, Manifold (black) |
|
$ 137.14 | |||||
| 6 | W10211395 | Panel, Manifold (stainless) |
|
- | |||||
| 6 | W10211382 | Panel, Manifold (bisque) |
|
- | |||||
| 7 | WPW10200192 | Knob, Control (white) (Replaces: W10200192) |
|
Immediately | $ 83.92 | ||||
| 7 | WPW10200193 | Knob, Control (black) (Replaces: W10200193) |
|
$ 24.18 | |||||
| 7 | W11194991 | Knob, Control (bisque) (Replaces: W10200194) |
|
- | |||||
| 7 | WPW10111302 | Knob, Control (stainless) (Replaces: W10111302) |
|
$ 110.31 | |||||
| 8 | W10249312 | Grate, Burner (gray) |
|
$ 115.29 | |||||
| 8 | W10249311 | Grate, Burner (black) |
|
$ 123.78 | |||||
| 9 | WP3368921 | Screw (Replaces: 7101P685-60) |
|
Immediately | $ 8.56 | ||||
| 10 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 14.72 |
