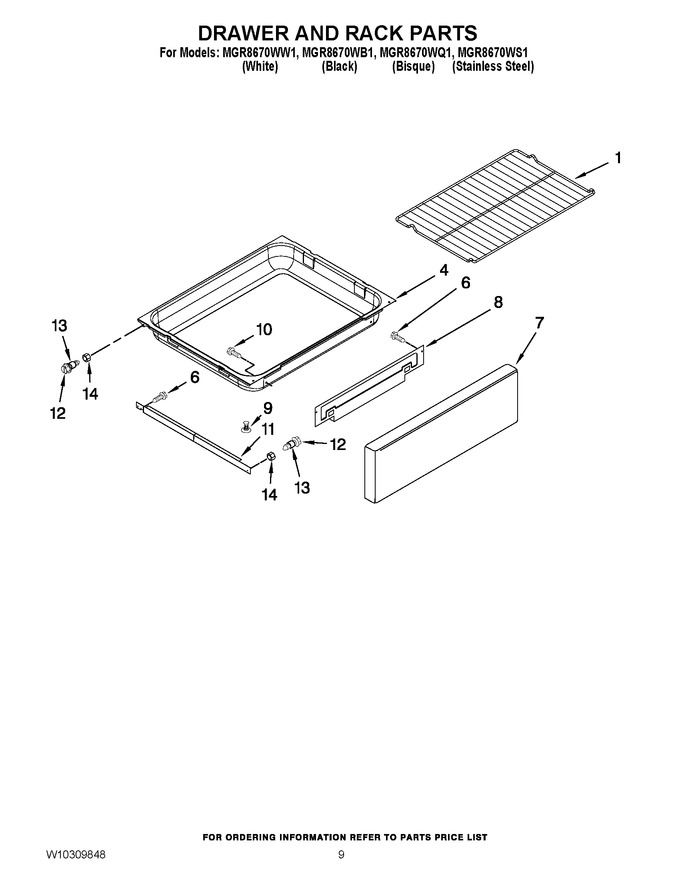

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10179196) |
|
Immediately | $ 46.84 | ||||
| 4 | WP3405F037-80 | Drawer (Replaces: 3405F037-80) |
|
$ 355.81 | |||||
| 6 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 14.72 | ||||
| 7 | W10172599 | Panel, Drawer Frnt (stainless) |
|
- | |||||
| 7 | W10172596 | Panel, Drawer Frnt (white) |
|
$ 75.36 | |||||
| 7 | W10172597 | Panel, Drawer Frnt (black) |
|
- | |||||
| 7 | W10172598 | Panel, Drawer Frnt (bisque) |
|
- | |||||
| 8 | W10173314 | Panel, Inner |
|
- | |||||
| 9 | 8038P037-60 | Drawer, Stop |
|
- | |||||
| 10 | WP7101P072-60 | Screw (Replaces: 7101P072-60) |
|
$ 8.06 | |||||
| 11 | 3406P034-51 | Rail, Drawer |
|
$ 33.42 | |||||
| 12 | 7118P032-60 | Shaft, Storage |
|
- | |||||
| 13 | W10272883 | Roller, Drawer |
|
$ 7.90 | |||||
| 14 | WP488130 | Nut (Replaces: 7103P082-60) |
|
$ 7.32 |
