01 - Cooktop Parts

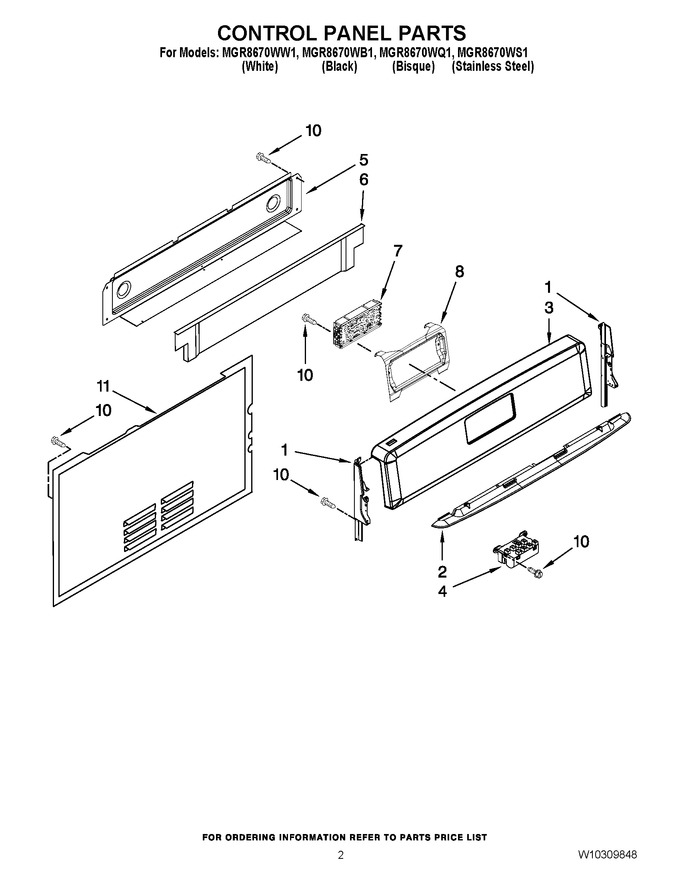

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10163969 | Endcap, Left Hand (black) |
|
$ 34.61 | |||||
| 1 | W10171417 | Endcap, Right Hand (bisque) |
|
- | |||||
| 1 | W10163967 | Endcap, Left Hand (white) |
|
$ 32.00 | |||||
| 1 | W10171416 | Endcap, Left Hand (bisque) |
|
- | |||||
| 1 | W10163970 | Endcap, Right Hand (black) |
|
$ 34.76 | |||||
| 1 | W10163968 | Endcap, Right Hand (white) |
|
- | |||||
| 2 | 3604F382-88 | Heat Shield,visor (bisque) |
|
$ 40.19 | |||||
| 2 | 3604F382-09 | Heat Shield,visor (black) |
|
$ 50.83 | |||||
| 2 | 3604F382-81 | Heat Shield, Visor (white) |
|
$ 32.49 | |||||
| 3 | W10225564 | Panel, Control (stainless) |
|
$ 118.55 | |||||
| 3 | W10225563 | Panel, Control (bisque) |
|
- | |||||
| 3 | W10225561 | Panel, Control (white) |
|
- | |||||
| 3 | W10225562 | Panel, Control (black) |
|
- | |||||
| 4 | 74009098 | Module, Spark (Replaces: 7431P053-60) |
|
$ 355.95 | |||||
| 5 | W10243038 | Cover, Upper |
|
$ 49.02 | |||||
| 6 | 3604F381-19 | Shield, Vent |
|
$ 31.31 | |||||
| 7 | W10236265 | Control (includes Overlay) (white) |
|
- | |||||
| 7 | WPW10271777 | Control (includes Overlay) (bisque) (Replaces: W10236267) |
|
$ 454.80 | |||||
| 7 | WPW10271776 | Control (includes Overlay) (black) (Replaces: W10236266) |
|
$ 372.90 | |||||
| 8 | W11230932 | Bracket, Control (Replaces: W10138683) |
|
Immediately | $ 84.81 | ||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | W10243047 | Cover, Main Wire |
|
- |
