01 - Cooktop Parts


02 - Control Panel Parts

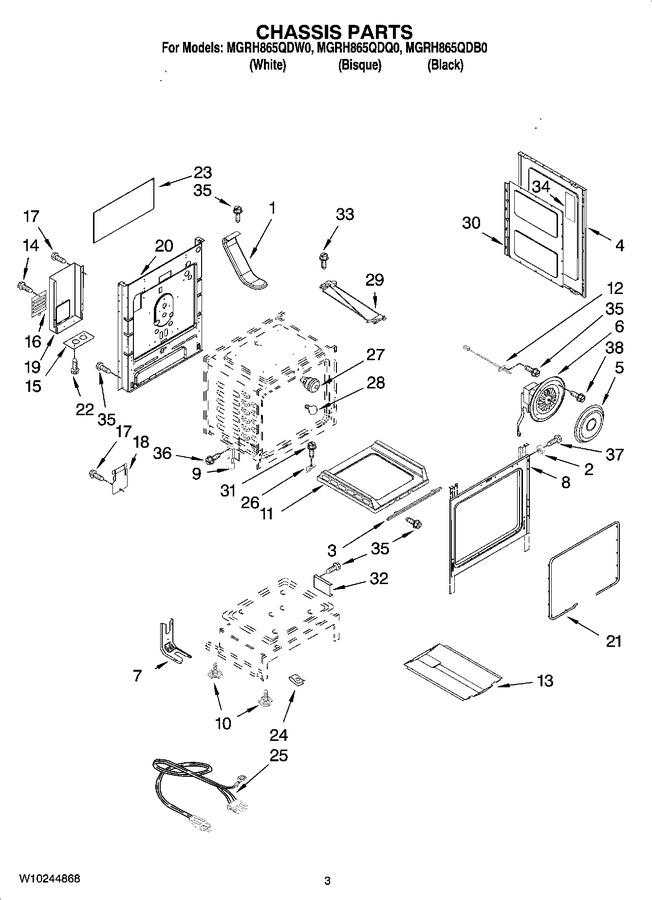

03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P080-60		Vent, Oven		Appelez-nous	-
2	74008690		Spacer, Side Panel   (Replaces: 8010P148-60)				$ 22.74
3	3807P680-45		Support, Oven Bottom				$ 33.39
4	2618F172-57		Panel, Side (2) (bisque)				$ 48.84
4	2618F172-58		Panel, Side (2) (white)				$ 47.61
4	2618F172-69		Panel, Side (2) (black)				$ 81.90
5	3605F305-19		Plate, Convection		Appelez-nous	-
6	7427P106-60		Fan, Convection		Appelez-nous	-
7	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
9	WP74010551		Hinge, Receiver   (Replaces: 7106P125-60)			Immediately	$ 14.70
10	W11665456		Foot, Leveler (4)   (Replaces: 7101P507-60)			Immediately	$ 29.52
11	WPW10211368		Bottom, Oven   (Replaces: 2205F053-19)			Immediately	$ 337.76
12	12001655		Sensor, Oven   (Replaces: 7430P041-60)			Immediately	$ 45.57
13	W11775243		Baffle, Burner   (Replaces: 3601P356-45)				$ 91.47
14	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
15	3605F146-51		Plate, Conduit				$ 6.06
16	4005F704-51		Panel, Access		Appelez-nous	-
17	WP7101P434-60		Screw (2)   (Replaces: 7101P434-60)				$ 7.30
18	4005F753-45		Cover, Broil		Appelez-nous	-
19	4005F703-51		Cover, Lower Wire		Appelez-nous	-
20	4002F347-51		Back, Main		Appelez-nous	-
21	W11562931		Seal, Oven   (Replaces: W10162385)			Immediately	$ 87.76
22	WP4159193		Screw   (Replaces: 7101P336-60)				$ 5.07
23	3604F381-19		Shield, Vent Ext				$ 31.31
24	74008835		Clip (4)   (Replaces: 7112P158-60)				$ 10.44
25	7402P109-60		Cord, Power				$ 8.90
26	3801P822-45		Bracket, Oven Bottom				$ 5.27
27	WP74011278		Light Assembly   (Replaces: 7407P181-60)				$ 118.48
28	8009		Bulb, Oven Light   (Replaces: 7407P103-60)			Immediately	$ 18.67
29	W10792991		Latch, Door Lock   (Replaces: 8002P104-60)				$ 339.59
30	3804F316-51		Retainer, Insulation		Appelez-nous	-
31	WP74003976		Screw (2)   (Replaces: 7101P500-60)				$ 7.55
32	3801P798-51		Bracket, Oven		Appelez-nous	-
33	74003975		Screw   (Replaces: 7101P375-60)				$ 14.03
34	7002P494-60		Insulation		Appelez-nous	-
35	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 14.72
36	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 5.07
37	7101P618-60		Screw		Appelez-nous	-
38	7101P385-60		Screw		Appelez-nous	-
NI	7002P424-60		Insulation, Wrap		Appelez-nous	-
NI	7002P492-60		Insulation, Back				$ 59.49

    View Diagram in Separate Window       Print Part List
