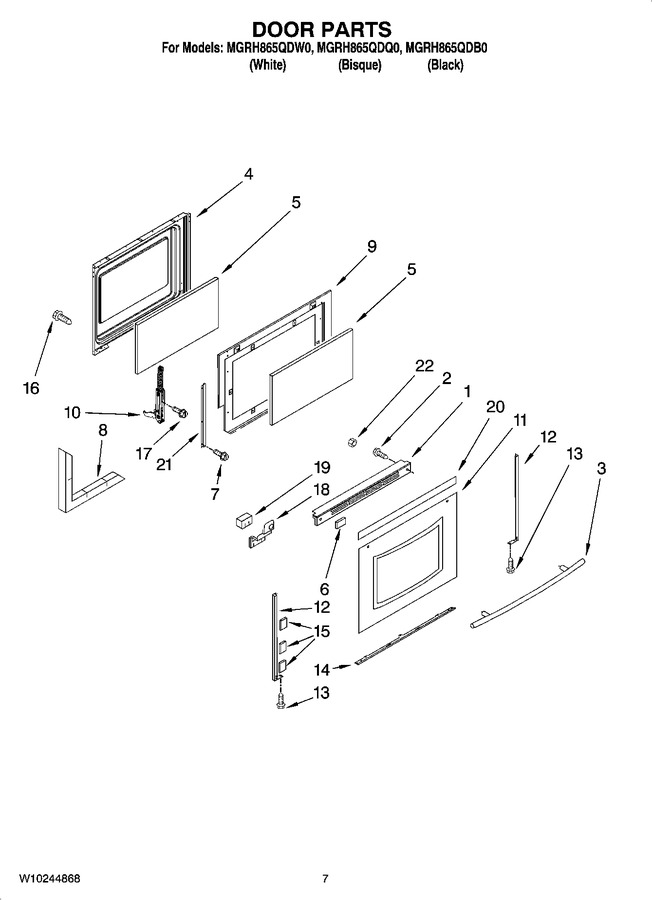

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3608F140-71 | Trim, Top (white) |
|
- | |||||
| 1 | 3608F140-78 | Trim, Top (bisque) |
|
- | |||||
| 1 | 3608F140-70 | Trim, Top (black) |
|
- | |||||
| 2 | 7010P636-60 | Screw (white) |
|
- | |||||
| 2 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 17.71 | |||||
| 2 | WP74009541 | Screw (bisque) (Replaces: 7101P528-60) |
|
$ 6.95 | |||||
| 3 | 74011777 | Handle, Door (black) (Replaces: 7701P524-60) |
|
$ 233.67 | |||||
| 3 | 7701P523-60 | Handle, Door (bisque) |
|
$ 93.43 | |||||
| 3 | WP74011675 | Handle, Door (white) (Replaces: 7701P522-60) |
|
$ 252.16 | |||||
| 4 | 2402W297-19 | Liner, Door |
|
$ 152.41 | |||||
| 5 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 6 | W10208309 | Tape (white) |
|
- | |||||
| 7 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 14.02 | ||||
| 8 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 9 | 3601F380-51 | Retainer, Insulation |
|
$ 25.83 | |||||
| 10 | 74010546 | Hinge, Door (Replaces: 7106P124-60) |
|
Immediately | $ 85.93 | ||||
| 11 | 7902M674-60 | Glass, Outer Door (bisque) |
|
- | |||||
| 11 | 7902P791-60 | Glass, Outer Door (black) |
|
- | |||||
| 11 | 7902M781-60 | Glass, Outer Door (white) |
|
- | |||||
| 12 | 3608F126-78 | Trim, Door Side (bisque) |
|
$ 58.63 | |||||
| 12 | 3608F126-71 | Trim, Door Side (white) |
|
$ 34.81 | |||||
| 12 | 8270P193-60 | Trim, Door Side (black) |
|
- | |||||
| 13 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 17.71 | |||||
| 14 | 3608F092-70 | Trim, Lower Door (black) |
|
$ 66.03 | |||||
| 14 | 3608F092-78 | Trim, Lower Door (bisque) |
|
$ 61.94 | |||||
| 14 | 3608F092-71 | Trim, Lower Door (white) |
|
$ 55.22 | |||||
| 15 | W10208308 | Tape, Double Sided (white) |
|
- | |||||
| 15 | W10208307 | Tape, Double Sided (black) |
|
- | |||||
| 16 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.19 | ||||
| 17 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.77 | |||||
| 18 | 3801F858-45 | Bracket, Handle (left) |
|
- | |||||
| 18 | 3801F857-45 | Bracket, Handle (right) |
|
- | |||||
| 19 | 7002P484-60 | Insulation, Corner |
|
- | |||||
| 20 | W10208311 | Tape, Foil (3``) |
|
- | |||||
| 21 | 3801F886-51 | Bracket, Window (2) |
|
$ 38.25 | |||||
| 22 | WP3400029 | Nut (Replaces: 311426) |
|
Immediately | $ 7.76 |
