SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts

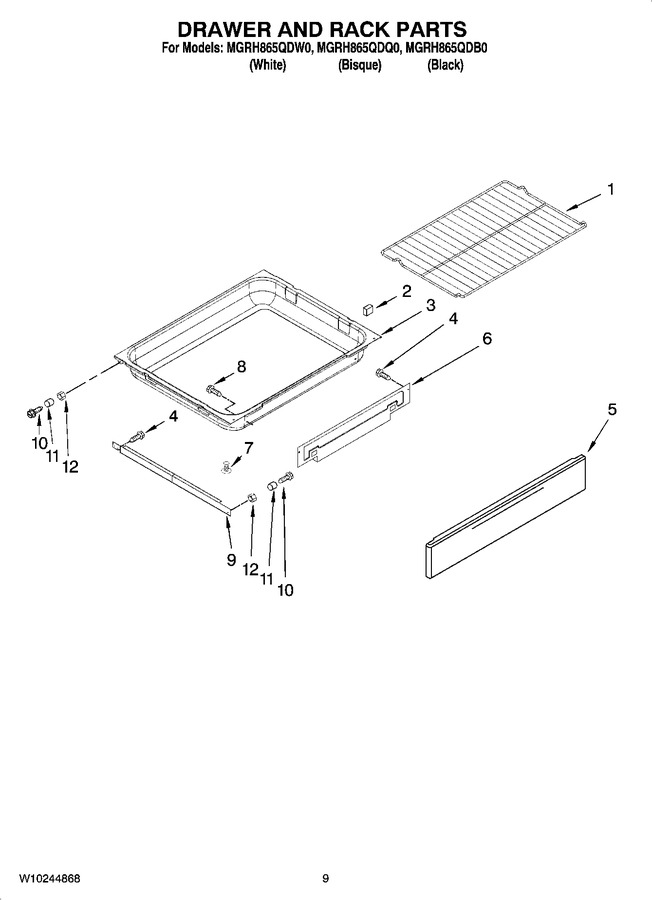

06 - Drawer And Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: W10179196)			Immediately	$ 46.84
2	WP74005546		Spacer, Bumper   (Replaces: 8010P130-60)				$ 10.53
3	WP3405F037-80		Drawer   (Replaces: 3405F037-80)				$ 338.87
4	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 14.02
5	2416F104-78		Panel, Drawer Frnt (bisque)		Appelez-nous	-
5	2416F104-70		Panel, Drawer Frnt (black)				$ 16.56
5	2416F104-71		Panel, Drawer Frnt (white)		Appelez-nous	-
6	3605F337-51		Panel, Inner				$ 31.91
7	8038P037-60		Drawer, Stop		Appelez-nous	-
8	WP7101P072-60		Screw   (Replaces: 7101P072-60)				$ 7.52
9	3406F034-51		Rail, Drawer		Appelez-nous	-
10	7118P032-60		Shaft, Storage Drawer Roller		Appelez-nous	-
11	WP74004078		Roller, Drawer   (Replaces: 74004078)			Immediately	$ 11.89
12	WP488130		Nut   (Replaces: 7103P082-60)				$ 6.97
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	4392900		Paint, Bulk (1 Qt.) (biscuit (uncut)		Appelez-nous	-
NI	799340		Paint, Bulk (1 Qt.) (black (uncut)		Appelez-nous	-
NI	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
NI	5171P730-60		Harness, Gas		Appelez-nous	-
NI	W10173437		Harness, Spark				$ 60.82
NI	8019P026-60		Clip, Harness		Appelez-nous	-
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 4.77
NI	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-
NI	8019P013-60		Clip, Wire				$ 14.95
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	799832		Kit, Porcelain Repair (white)		Appelez-nous	-
NI	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 83.07
NI	261582		Grease		Appelez-nous	-
NI	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
NI	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
NI	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
NI	511873		Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.)				$ 49.29
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 38.21
NI	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)				$ 57.04
NI	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 57.04
NI	350942		Paint, Pressurized Spray (12 Oz.) (primer) (white)   (Replaces: 206922)				$ 89.66

    View Diagram in Separate Window       Print Part List
