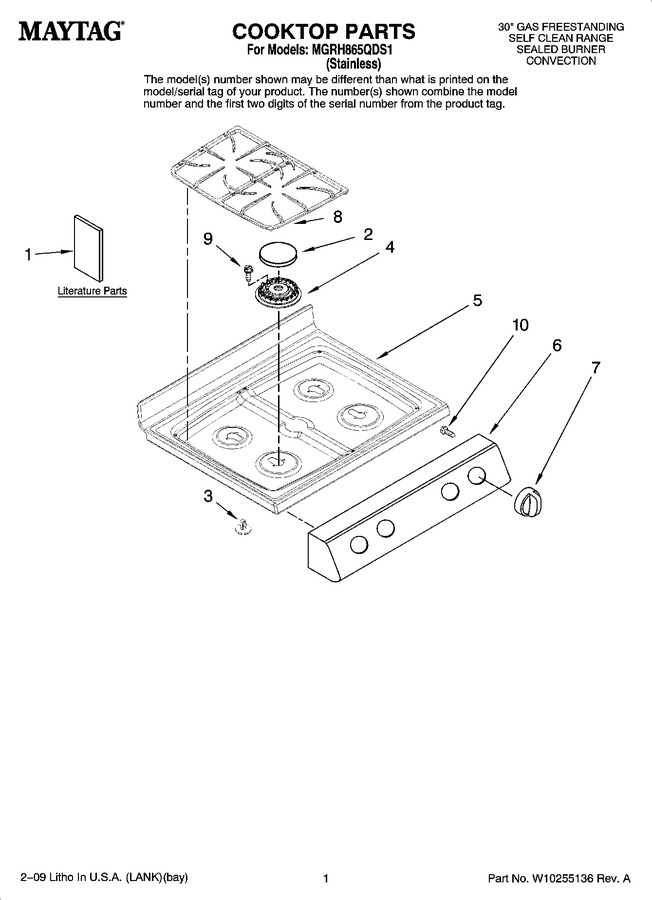

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P571-60 | Installation Instructions |
|
- | |||||
| 1 | 8113P688-60 | Owners Manual |
|
- | |||||
| 1 | 9762761 | Brochure Tips (safe Cooking) (english) |
|
- | |||||
| 1 | W10065852 | Brochure, Tips Safe Cooking (french) |
|
- | |||||
| 2 | WP3191898 | Cap, Burner (lr) (Replaces: 7504P136-60) |
|
$ 71.00 | |||||
| 2 | WP74007415 | Cap, Burner (rr & Lf) (Replaces: 7504P137-60) |
|
$ 101.91 | |||||
| 2 | 7504P138-60 | Cap, Burner (rf) |
|
- | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 8.81 | |||||
| 4 | WPW10406283 | Burner (rr & Lf) (Replaces: 7540P043-60) |
|
$ 78.02 | |||||
| 4 | WPW10406243 | Burner (rf) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 4 | WPW10406878 | Burner (lr) (Replaces: 8286183) |
|
$ 107.48 | |||||
| 5 | 2001F284-09 | Cooktop |
|
- | |||||
| 6 | 2616N380-50 | Panel, Manifold |
|
- | |||||
| 7 | 7733P427-60 | Knob, Control (4) |
|
- | |||||
| 8 | 74009120 | Grate, Burner (2) (Replaces: 7518P193-60) |
|
$ 278.52 | |||||
| 9 | WP3368921 | Screw (8) (Replaces: 7101P685-60) |
|
Immediately | $ 8.56 | ||||
| 10 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 14.72 |
