01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

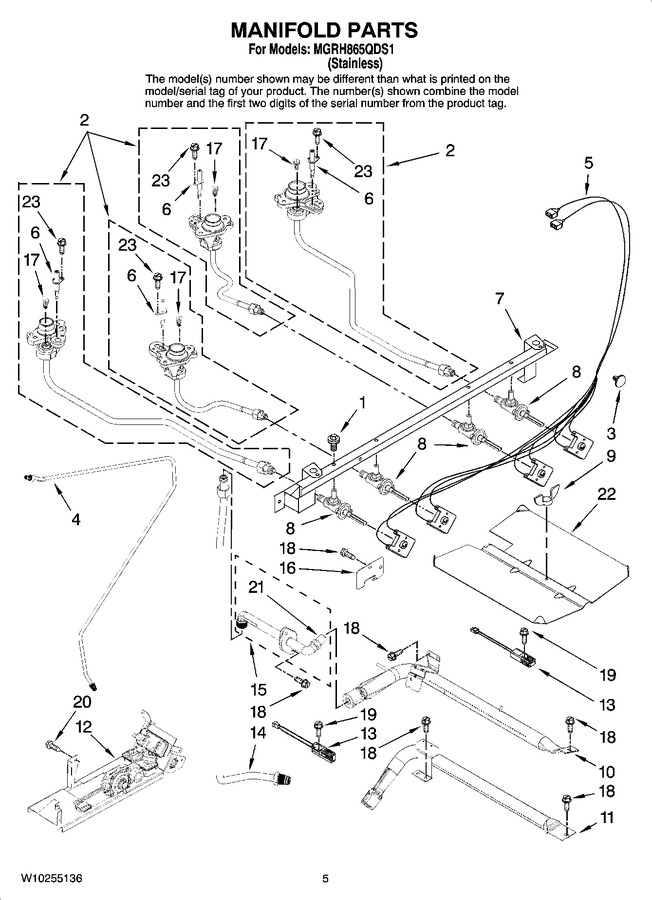

04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74009857 | Screw, Valve (Replaces: 7101P651-60) |
|
$ 5.78 | |||||
| 2 | W10159266 | Holder, Orifice (lf) (Replaces: 7527P123-60) |
|
- | |||||
| 2 | 7527P098-60 | Holder, Orifice (lr) |
|
$ 54.33 | |||||
| 2 | W10154209 | Holder, Orifice (rr) (Replaces: 7527P124-60) |
|
$ 163.80 | |||||
| 2 | 7527P095-60 | Holder, Orifice (rf) |
|
- | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 8.81 | |||||
| 4 | 7506P361-60 | Tubing, Main Supply |
|
- | |||||
| 5 | WP74010630 | Harness, Igniter Includes Switches (Replaces: 7403P982-60) |
|
$ 248.57 | |||||
| 6 | WP74009958 | Ignitor, Top Burner (4) (Replaces: 82000311) |
|
Immediately | $ 33.65 | ||||
| 7 | 7513P523-60 | Pipe, Manifold |
|
- | |||||
| 8 | 74010751 | Valve ((rf)) (Replaces: 7502P501-60) |
|
$ 283.44 | |||||
| 8 | 7502P500-60 | Valve (lf/rr) |
|
$ 118.46 | |||||
| 8 | WP7502P499-60 | Valve (lf) (Replaces: 7502P499-60) |
|
$ 273.86 | |||||
| 9 | 7103P030-60 | Nut |
|
$ 7.43 | |||||
| 10 | 7505P311-60 | Burner, Broiler |
|
- | |||||
| 11 | 7505P331-60 | Burner, Bake |
|
- | |||||
| 12 | 7501P233-60 | Valve/regulator |
|
- | |||||
| 13 | 74007498 | Igniter (broil) (Replaces: 7432P106-60) |
|
Immediately | $ 87.11 | ||||
| 13 | WP7432P136-60 | Igniter (bake) (Replaces: 7432P136-60) |
|
Immediately | $ 94.02 | ||||
| 14 | 74008830 | Tubing (broiler Fitting To Valve) (Replaces: 7506P368-60) |
|
$ 87.44 | |||||
| 15 | 74008818 | Fitting, Broiler (Replaces: 7507P357-60) |
|
$ 86.02 | |||||
| 16 | 4005F421-45 | Cover,igniter |
|
- | |||||
| 17 | W10156137 | Orifice, Burner (left Rear) |
|
$ 73.49 | |||||
| 17 | W10156136 | Orifice, Burner (right Rear) |
|
$ 100.66 | |||||
| 17 | W10156836 | Orifice, Burner (right Front) |
|
$ 105.08 | |||||
| 18 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 14.72 | ||||
| 19 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 20 | WP4159193 | Screw (Replaces: 7101P027-60) |
|
$ 5.07 | |||||
| 21 | 74008834 | Orifice (Replaces: 7507P366-60) |
|
$ 54.55 | |||||
| 22 | 3601P336-45 | Baffle, Broil Burner |
|
$ 227.09 | |||||
| 23 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| NI | 5789A598-60 | Spuds, Lp Gas (kit Of 5) |
|
$ 62.34 |
