Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10176966 Use & Care Guide Appelez-nous -
1 W10217131 Tech Sheet Appelez-nous -
1 W10133488 Quick Start Guide Appelez-nous -
1 W10234015 Energy Guide Appelez-nous -
2 W10191381 Top (green) Appelez-nous -
2 W10003900 Top (white) Appelez-nous -
3 W10171708 Cabinet (white) Appelez-nous -
3 W10176850 Cabinet (green) Appelez-nous -
4 W10157475 Panel, Front (white) Appelez-nous -
4 W10176906 Panel, Front (green) Appelez-nous -
5 W10003640 Toe Panel (white) Appelez-nous -
5 W10191380 Toe Panel (green) Appelez-nous -
6 W10190646 Ring, Trim (green) Appelez-nous -
6 W10182998 Ring, Trim (white) Special Order $ 203.41

7 WP89503 Hose, Water Inlet (cold Water)   (Replaces: W10194208) In-Stock Immediately $ 24.09

7 WP89503 Hose, Water Inlet (hot Water)   (Replaces: 8571378) In-Stock Immediately $ 24.09

8 WP16123 Washer, Water Inlet Hose (4)   (Replaces: 16123) Special Order $ 8.16

9 W10112671 Clip, Trim-metal Special Order $ 12.31

10 WP8183210 Clip, Trim   (Replaces: W10029650) Special Order $ 7.30

11 W10862938 Foot, Leveling   (Replaces: W10064810) In-Stock Immediately $ 13.22

12 W10289554A Bolt, Shipping (lower)   (Replaces: W10003350) Special Order $ 68.21

12 W10289554A Bolt, Shipping (upper)   (Replaces: W10003340) Special Order $ 68.21

13 W10165710 Brace, Transport (upper) Appelez-nous -
13 WPW10003040 Brace, Transport (lower)   (Replaces: W10003040) Special Order $ 101.61

14 W10003030 Panel, Rear Special Order $ 156.27

15 3976348 Absorber, Sound Special Order $ 37.92

16 W10110677 Brace, Rear Special Order $ 33.11

17 8540479 Screw, Grounding Special Order $ 9.22

18 W10115662 Harness, Wiring (lower Main) (includes Items 19 & 20) Appelez-nous -
19 W10216383 Channel, Harness (side) Special Order $ 141.78

20 W10168549 Channel, Harness (bottom) Special Order $ 132.09

21 WPW10004260 Hose, Pressure Switch   (Replaces: W10004260) In-Stock Immediately $ 7.00

22 WP8181763 Bracket, Spring   (Replaces: W10008890) Special Order $ 83.99

23 WPW10085220 Microswitch (2)   (Replaces: 8540210) Special Order $ 34.91

24 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 8.52

25 W11757170 Connector, Drain Hose   (Replaces: W10003260) In-Stock Immediately $ 6.71

26 WP8181737 Hose, Drain (outer)   (Replaces: W10003280) In-Stock Immediately $ 62.50

27 8182635 Strain Relief   (Replaces: W10110676) Special Order $ 17.56

28 WP8183009 Cord, Power   (Replaces: W10110674) Special Order $ 155.04

29 W10022290 Clip, Outer Hose Holder Appelez-nous -
30 WPW10280024 U-bend, Drain Hose   (Replaces: 8540021) Special Order $ 83.51

31 W11116978 Sleeve, Cord Support (2)   (Replaces: 8540728) Special Order $ 23.94

32 8182201 Screw, 3 X 8 Mm   (Replaces: 8540727) Special Order $ 14.08

33 WP8540268 Cover, Transport   (Replaces: 8540268) Special Order $ 7.30

34 W10003270 Clip, Outer Hose Holder Appelez-nous -
35 WP489442 Screw, 8-18 X 5/8   (Replaces: W10015090) In-Stock Immediately $ 11.49

36 WPW10339879 Cable Tie   (Replaces: 3347868) Special Order $ 8.30

37 WPW10367632 Filter, Interference   (Replaces: 8540230) Special Order $ 128.33

38 WPW10249845 Switch, Analog Pressure Sensor   (Replaces: W10249845) In-Stock Immediately $ 260.16


    View Diagram in Separate Window     Print Icon   Print Part List

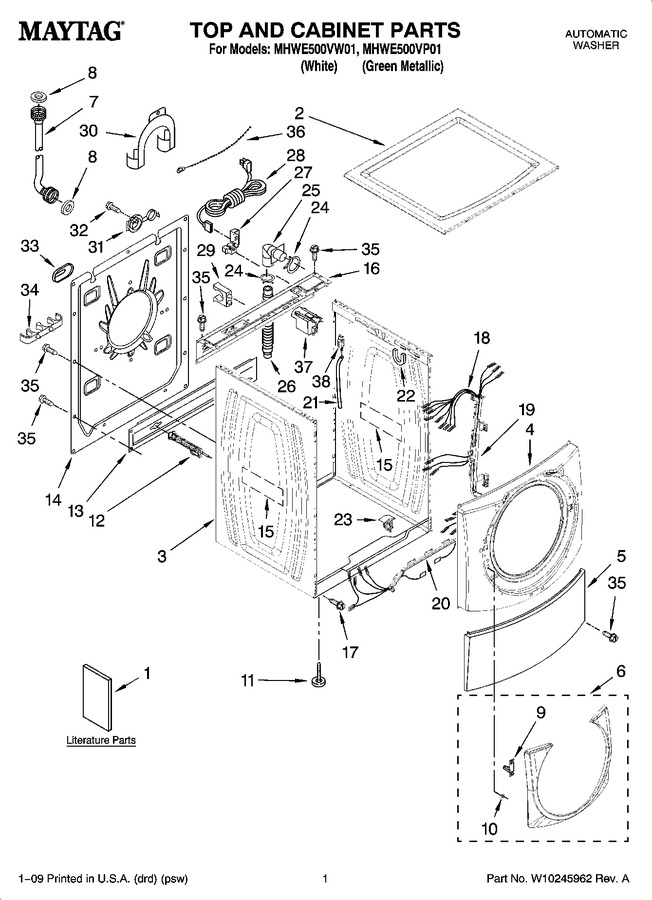

Diagram for MHWE500VW01
