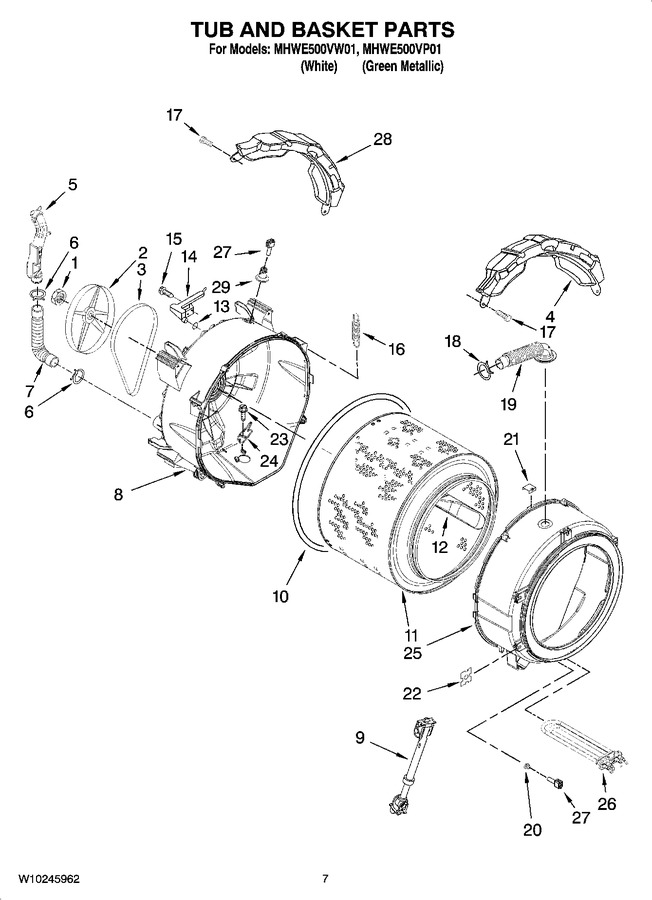

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283361 | Nut, Pulley (Replaces: 8533999) |
|
Immediately | $ 83.07 | ||||
| 2 | WP8182650 | Pulley (Replaces: W10003730) |
|
Immediately | $ 197.07 | ||||
| 3 | WPW10388418 | Belt (Replaces: W10116215) |
|
Immediately | $ 56.08 | ||||
| 4 | WPW10008880 | Counterweight Front (2) (Replaces: W10008880) |
|
$ 184.72 | |||||
| 5 | W10249838 | Pipe, Ventilation |
|
$ 110.06 | |||||
| 6 | 8540010 | Clamp |
|
$ 11.74 | |||||
| 7 | WP8181743 | Hose, Exhaust (Replaces: W10004330) |
|
$ 113.79 | |||||
| 8 | W10213923 | Tub, Rear (includes Items 10, 22, 23 & 24) (Replaces: W10165398) |
|
$ 680.38 | |||||
| 9 | W10822553 | Shock Absorber (4) (Replaces: W10015830) |
|
Immediately | $ 83.35 | ||||
| 10 | WPW10036350 | Gasket, Tub (Replaces: W10036350) |
|
$ 92.02 | |||||
| 11 | WPW10040480 | Basket (Replaces: W10040480) |
|
$ 605.78 | |||||
| 12 | W10200794 | Baffle, Tub |
|
$ 45.32 | |||||
| 13 | WPW10250553 | O-ring (Replaces: W10250553) |
|
$ 7.55 | |||||
| 14 | W10003600 | Airtrap |
|
- | |||||
| 15 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.94 | |||||
| 16 | W10135004 | Spring, Suspension (set Of 2) (Replaces: W10127411) |
|
Immediately | $ 87.78 | ||||
| 17 | W11685857 | Bolt, Counterweight Mtg. (Replaces: W10094780) |
|
$ 14.81 | |||||
| 18 | 3363365 | Clamp, Hose |
|
$ 11.29 | |||||
| 19 | WP8540015 | Hose, Exhaust (Replaces: 8540015) |
|
Immediately | $ 43.94 | ||||
| 20 | W11590578 | Seal, Ntc (Replaces: 8540766) |
|
Immediately | $ 8.37 | ||||
| 21 | WP8540092 | Clamp, Tub (Replaces: 8540092) |
|
$ 7.97 | |||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 7.30 | ||||
| 23 | W11230114 | Screw (Replaces: 8540880) |
|
$ 13.94 | |||||
| 24 | W10250558 | Bracket, Heater Support |
|
$ 13.03 | |||||
| 25 | W10190573 | Tub, Front (includes Items 10 & 22) |
|
- | |||||
| 26 | WPW10249844 | Heater-steamer (Replaces: W10249844) |
|
$ 330.15 | |||||
| 27 | WPW10467289 | Ntc (Replaces: 8540226) |
|
Immediately | $ 47.80 | ||||
| 28 | W10008870 | Counterweight, Rear |
|
- | |||||
| 29 | W10249843 | Seal, Temperature Sensor |
|
- |
