01 - Top And Cabinet Parts


02 - Door And Latch Parts

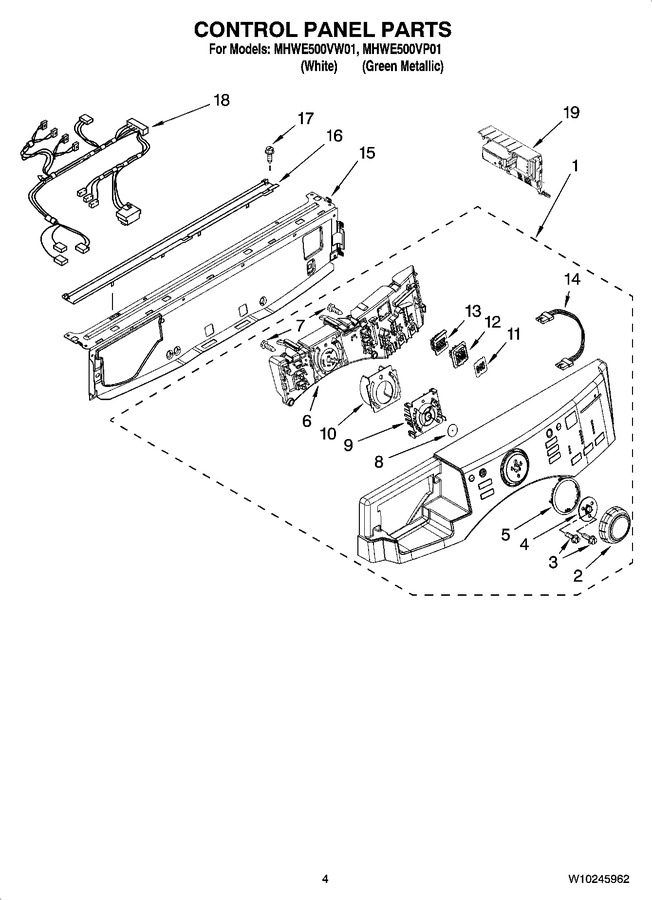

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10176642		Panel, Control (white)		Appelez-nous	-
1	W10176643		Panel, Control (green)				$ 387.45
2	W10164576		Knob, Control				$ 56.77
3	W11230114		Screw   (Replaces: 8540513)				$ 13.94
4	W10172298		Bushing, Knob				$ 13.40
5	W10164567		Light Guide, Cycle				$ 68.85
6	W11038849		User Interface,   (Replaces: W10164541)				$ 325.32
7	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
8	8572039		Seal, User Interface		Appelez-nous	-
9	W10170293		Light Guide - Cycle, Internal				$ 94.31
10	W10170295		Frame-light Guide		Appelez-nous	-
11	W10171504		Foil-display				$ 13.42
12	W10164578		Light Guide - 3 Digit Display				$ 15.96
13	W10171502		Frame-light (guide Display)				$ 16.93
14	W10167292		Harness, Wiring (user Interface)				$ 172.14
15	W10059240		Brace, Front Top				$ 204.59
16	W10003700		Channel, Water		Appelez-nous	-
17	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 11.49
18	W10221496		Harness, Wiring (upper Main)		Appelez-nous	-
19	W10217077		Microcomputer, Machine Control				$ 300.94

    View Diagram in Separate Window       Print Part List
