SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts

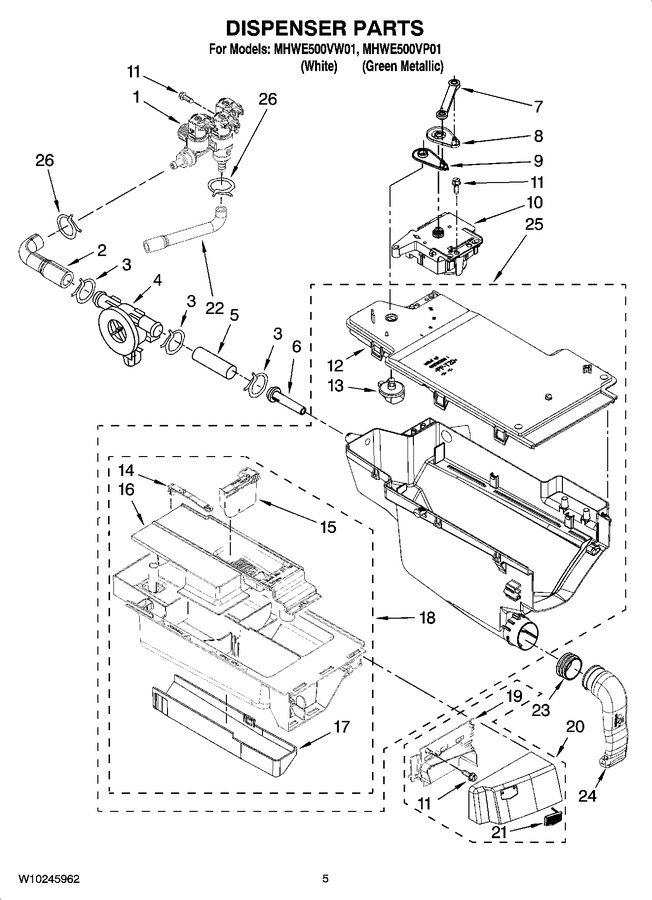

04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10247305		Valve, Inlet   (Replaces: W10247305)				$ 229.72
2	8183182		Hose, Flowmeter (l-shaped)				$ 39.45
3	WP596669		Clamp   (Replaces: 370450)			Immediately	$ 8.40
4	WPW10110225		Flowmeter   (Replaces: W10110225)			Immediately	$ 109.03
5	8183180		Hose, Inlet Nozzle		Appelez-nous	-
6	WP8183181		Nozzle, Inlet   (Replaces: 8540042)				$ 90.30
7	WP8183183		Lever, Connection   (Replaces: W10003830)				$ 90.23
8	WP8183184		Cam, Actuator   (Replaces: W10003190)				$ 90.23
9	WPW10161052		Lever, Water Distribution   (Replaces: W10003180)			Immediately	$ 7.19
10	WPW10352973		Actuator   (Replaces: W10163975)			Immediately	$ 134.69
11	WP8540282		Screw   (Replaces: 8540282)				$ 11.56
12	W10005080		Plate, Distribution		Appelez-nous	-
13	WP8181712		Nozzle, Distribution   (Replaces: W10003110)				$ 89.11
14	W10003170		Hook, Drawer		Appelez-nous	-
15	WPW10121596		Separator, With Selection Slider   (Replaces: W10015200)				$ 73.07
16	W10003150		Siphon, Bleach/softener		Appelez-nous	-
17	W10003140		Cover, Detergent Drawer				$ 85.63
18	WPW10015190		Drawer, Detergent (complete)   (Replaces: W10015190)				$ 117.01
19	W10190551		Bracket, Handle Fixation (green)				$ 147.45
19	W10153277		Bracket, Handle Fixation (white)				$ 104.12
20	W10189240		Handle, Drawer (green)				$ 95.43
20	W10193815		Handle, Drawer (white)				$ 90.64
21	W10732500		Medallion   (Replaces: W10177245)				$ 43.27
22	WP8181710		Hose, Inlet Valve To Vent Pipe   (Replaces: 8181710)				$ 24.59
23	WP8181747		Seal   (Replaces: W10003360)			Immediately	$ 26.03
24	WPW10005300		Tube, Dispenser To Bellow   (Replaces: W10005300)			Immediately	$ 21.19
25	W10074160		Dispenser, Complete (includes Item 9)		Appelez-nous	-
26	WP489503		Clamp, Hose   (Replaces: 8181754)			Immediately	$ 10.75

    View Diagram in Separate Window       Print Part List
