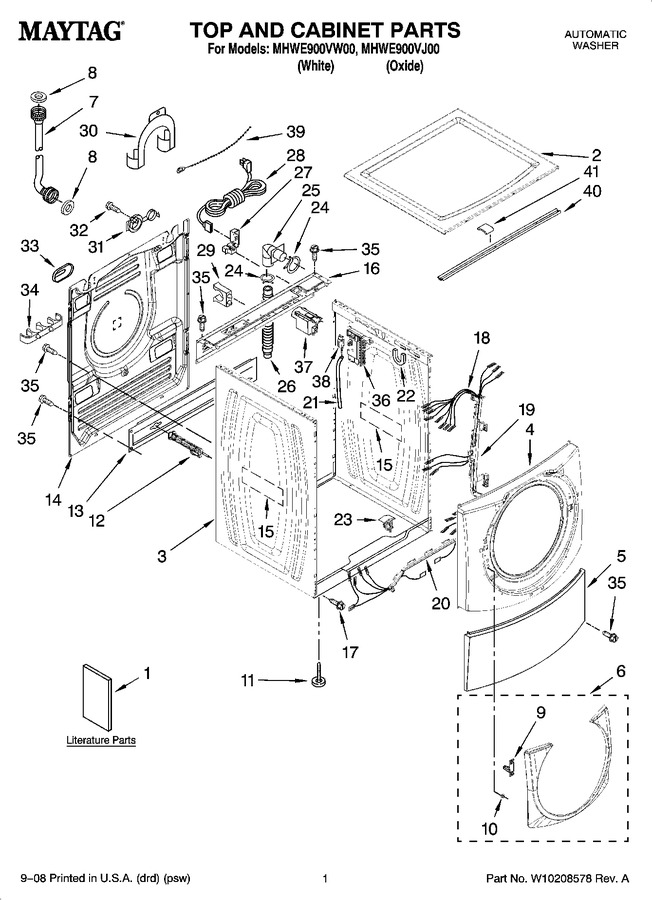

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10176969 | Use & Care Guide |
|
- | |||||
| 1 | W10176957 | Tech Sheet |
|
- | |||||
| 1 | W10133488 | Quick Start Guide |
|
- | |||||
| 1 | W10176961 | Energy Guide |
|
- | |||||
| 2 | W10176932 | Top (oxide) |
|
$ 88.18 | |||||
| 2 | W10003900 | Top (white) |
|
- | |||||
| 3 | W10171708 | Cabinet (white) |
|
- | |||||
| 3 | W10176856 | Cabinet (oxide) |
|
- | |||||
| 4 | W10157475 | Panel, Front (white) |
|
- | |||||
| 4 | W10176908 | Panel, Front (oxide) |
|
$ 201.35 | |||||
| 5 | W10003640 | Toe Panel (white) |
|
- | |||||
| 5 | W10176925 | Toe Panel (oxide) |
|
- | |||||
| 6 | W10182998 | Ring, Trim (white) |
|
$ 203.41 | |||||
| 6 | W10183001 | Ring, Trim (oxide) |
|
$ 324.54 | |||||
| 7 | WP89503 | Hose, Water Inlet (red Coupler) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 7 | WP89503 | Hose, Water Inlet (blue Coupler) (Replaces: 8571377) |
|
Immediately | $ 24.09 | ||||
| 8 | WP16123 | Washer, Water Inlet Hose (4) (Replaces: 16123) |
|
$ 8.16 | |||||
| 9 | W10112671 | Clip, Trim-metal |
|
$ 12.31 | |||||
| 10 | WP8183210 | Clip, Trim (Replaces: W10029650) |
|
$ 7.30 | |||||
| 11 | W10862938 | Foot, Leveling (Replaces: W10064810) |
|
Immediately | $ 13.22 | ||||
| 12 | W10289554A | Bolt, Shipping (lower) (Replaces: W10196667) |
|
$ 68.21 | |||||
| 12 | W10289554A | Bolt, Shipping (upper) (Replaces: W10196665) |
|
$ 68.21 | |||||
| 13 | W10165710 | Brace, Transport (upper) |
|
- | |||||
| 13 | WPW10003040 | Brace, Transport (lower) (Replaces: W10003040) |
|
$ 101.61 | |||||
| 14 | W10165713 | Panel, Rear |
|
- | |||||
| 15 | 3976348 | Absorber, Sound |
|
$ 37.92 | |||||
| 16 | W10110677 | Brace, Rear |
|
$ 33.11 | |||||
| 17 | 8540479 | Screw, Grounding |
|
$ 9.22 | |||||
| 18 | W10167287 | Harness, Wiring (lower Main) (includes Items 19 & 20) |
|
$ 281.30 | |||||
| 19 | W10216383 | Channel, Harness (side) (Replaces: W10003460) |
|
$ 141.78 | |||||
| 20 | W10131757 | Channel, Harness (bottom) |
|
- | |||||
| 21 | WPW10004260 | Hose, Pressure Switch (Replaces: W10004260) |
|
Immediately | $ 7.00 | ||||
| 22 | WP8181763 | Bracket, Spring (Replaces: W10008890) |
|
$ 83.99 | |||||
| 23 | WPW10085220 | Microswitch (2) (Replaces: 8540210) |
|
$ 34.91 | |||||
| 24 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 25 | W11757170 | Connector, Drain Hose (Replaces: W10003260) |
|
Immediately | $ 6.71 | ||||
| 26 | WP8181737 | Hose, Drain (outer) (Replaces: W10003280) |
|
Immediately | $ 62.50 | ||||
| 27 | 8182635 | Strain Relief (Replaces: W10110676) |
|
$ 17.56 | |||||
| 28 | WP8183009 | Cord, Power (Replaces: W10110674) |
|
$ 155.04 | |||||
| 29 | W10022290 | Clip, Outer Hose Holder |
|
- | |||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: 8540021) |
|
$ 83.51 | |||||
| 31 | W11116978 | Sleeve, Cord Support (2) (Replaces: 8540728) |
|
$ 23.94 | |||||
| 32 | 8182201 | Screw, 3 X 8 Mm (Replaces: 8540727) |
|
$ 14.08 | |||||
| 33 | WP8540268 | Cover, Transport (Replaces: 8540268) |
|
$ 7.30 | |||||
| 34 | W10003270 | Clip, Outer Hose Holder |
|
- | |||||
| 35 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 11.49 | ||||
| 36 | W10156258 | Control Board, Expansion |
|
$ 289.81 | |||||
| 37 | WPW10367632 | Filter, Interference (Replaces: 8540230) |
|
$ 128.33 | |||||
| 38 | W10156252 | Switch, Analog Pressure Sensor |
|
$ 369.26 | |||||
| 39 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 40 | WP8540720 | Brace, Top (includes Item 41) (Replaces: 8540720) |
|
$ 85.84 | |||||
| 41 | WP8283273 | Damper, Brace (Replaces: 8283273) |
|
$ 28.40 |
