SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts

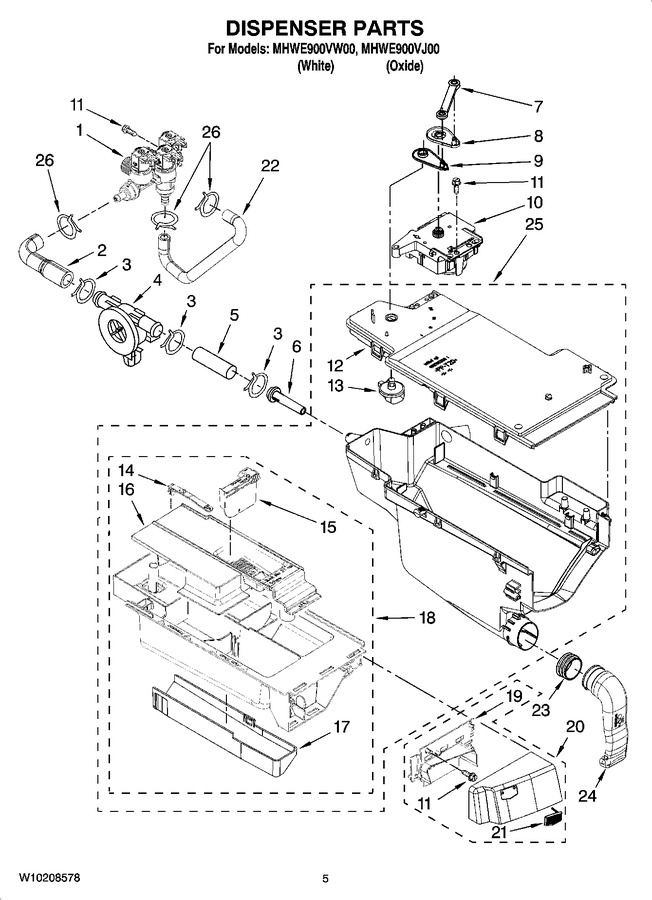

04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Steamer, Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10156253		Valve, Inlet   (Replaces: W10156253)			Immediately	$ 233.24
2	8183182		Hose, Flowmeter (l-shaped)				$ 41.42
3	WP596669		Clamp   (Replaces: 370450)			Immediately	$ 8.82
4	WPW10110225		Flowmeter   (Replaces: W10110225)			Immediately	$ 109.03
5	8183180		Hose, Inlet Nozzle		Appelez-nous	-
6	WP8183181		Nozzle, Inlet   (Replaces: 8540042)				$ 94.82
7	WP8183183		Lever, Connection   (Replaces: W10003830)				$ 94.74
8	WP8183184		Cam, Actuator   (Replaces: W10003190)				$ 94.74
9	WPW10161052		Lever, Water Distribution   (Replaces: W10161052)			Immediately	$ 7.55
10	WPW10352973		Actuator   (Replaces: W10163975)			Immediately	$ 134.69
11	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
12	W10164400		Plate, Distribution				$ 27.70
13	WP8181712		Nozzle, Distribution   (Replaces: W10003110)				$ 93.57
14	W10003170		Hook, Drawer		Appelez-nous	-
15	WPW10121596		Separator, With Selection Slider   (Replaces: W10015200)				$ 76.72
16	W10157775		Siphon, Bleach/softener				$ 55.65
17	W10003140		Cover, Detergent Drawer				$ 89.91
18	W10157760		Drawer, Detergent (complete)				$ 51.72
19	W10176657		Bracket, Handle Fixation (oxide)				$ 93.92
19	W10153277		Bracket, Handle Fixation (white)				$ 109.33
20	W10189241		Handle, Drawer (oxide)				$ 130.42
20	W10193817		Handle, Drawer (white)				$ 94.14
21	W10732500		Medallion   (Replaces: W10177245)				$ 45.43
22	W10156131		Hose, Inlet Valve To Steamer Siphon		Appelez-nous	-
23	WP8181747		Seal   (Replaces: W10003360)			Immediately	$ 27.33
24	WPW10005300		Tube, Dispenser To Bellow   (Replaces: W10005300)			Immediately	$ 22.25
25	W10157759		Dispenser, Complete (includes Item 9)				$ 127.50
26	WP489503		Clamp, Hose   (Replaces: 8181754)			Immediately	$ 11.29

    View Diagram in Separate Window       Print Part List
