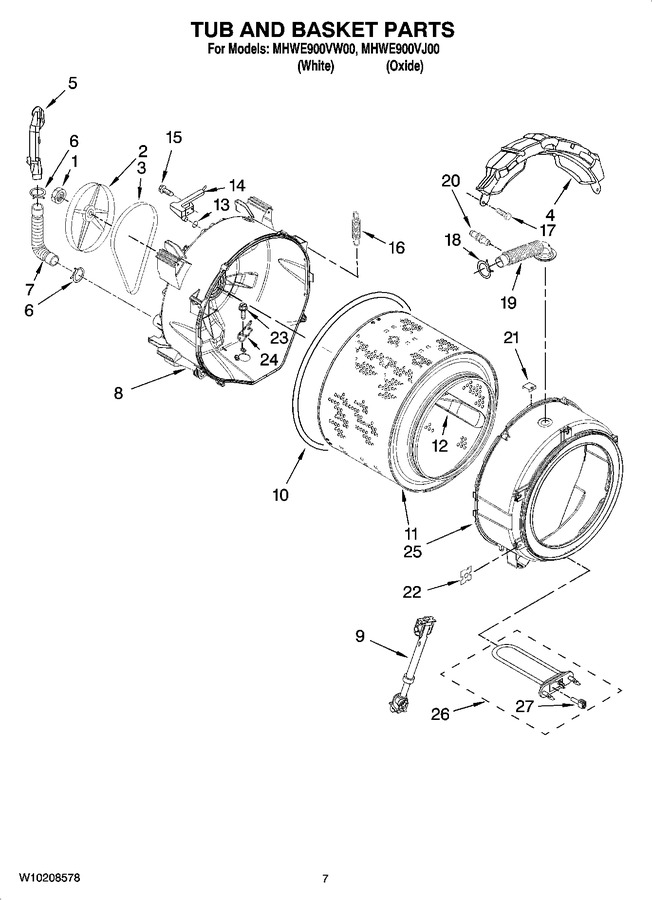

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10283361		Nut, Pulley   (Replaces: 8533999)			Immediately	$ 83.07
2	WP8182650		Pulley   (Replaces: W10003730)			Immediately	$ 197.07
3	WPW10388418		Belt   (Replaces: W10116215)			Immediately	$ 56.08
4	W10163424		Counterweight Front (2)				$ 74.63
5	W10112169		Pipe, Ventilation				$ 187.87
6	8540010		Clamp				$ 11.74
7	WP8181743		Hose, Exhaust   (Replaces: W10004330)				$ 113.79
8	W10165399		Tub, Rear (includes Items 10, 22, 23 & 24)		Appelez-nous	-
9	W10822553		Shock Absorber (4)   (Replaces: W10015830)			Immediately	$ 83.35
10	WPW10036350		Gasket, Tub   (Replaces: W10036350)				$ 92.02
11	WPW10159904		Basket   (Replaces: W10159904)				$ 993.15
12	WPW10110114		Baffle, Tub   (Replaces: W10110114)				$ 113.42
13	WPW10250553		O-ring   (Replaces: W10004270)				$ 7.55
14	W10003600		Airtrap		Appelez-nous	-
15	W11230114		Screw   (Replaces: 8540513)				$ 13.94
16	W10135004		Spring, Suspension (set Of 2)   (Replaces: W10127411)			Immediately	$ 87.78
17	W11685857		Bolt, Counterweight Mtg.   (Replaces: W10094780)				$ 14.81
18	3363365		Clamp, Hose				$ 11.29
19	W10156130		Hose, Exhaust				$ 46.31
20	W10156249		Connector, Overflow Hose				$ 36.00
21	WP8540092		Clamp, Tub   (Replaces: 8540092)				$ 7.97
22	WP8182512		Nut, Push-in   (Replaces: 8540072)			Immediately	$ 7.30
23	W11230114		Screw   (Replaces: 8540880)				$ 13.94
24	W10250558		Clamp, Heating Element   (Replaces: W10015240)				$ 13.03
25	W10004180		Tub, Front (includes Items 10 & 22)		Appelez-nous	-
26	WPW10426377		Element, Heating   (Replaces: W10155115)				$ 319.00
27	WPW10467289		Ntc   (Replaces: 8540226)			Immediately	$ 47.80
