01 - Top And Cabinet Parts


02 - Door And Latch Parts

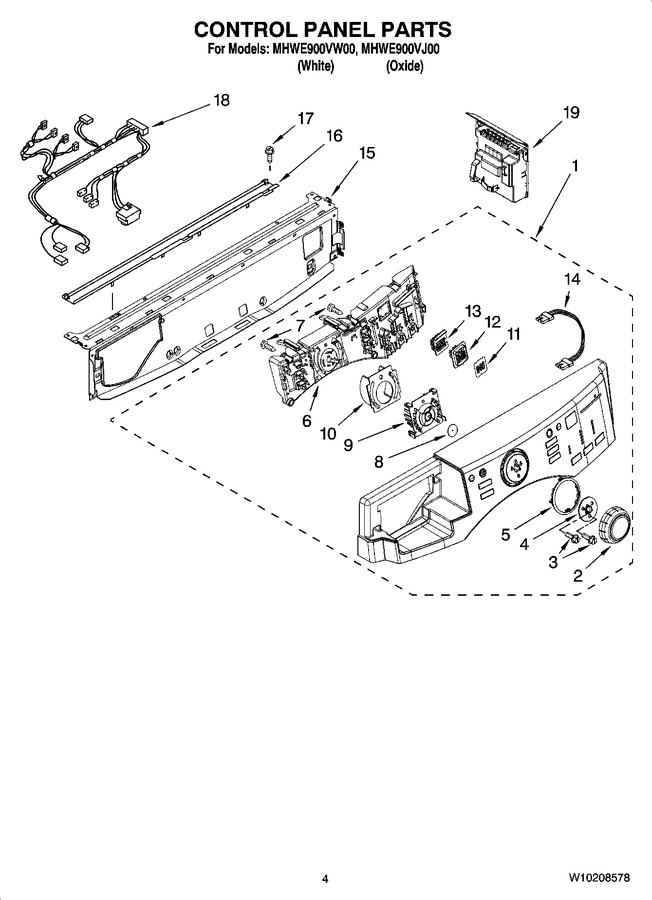

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Steamer, Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10176645		Panel, Control (white)				$ 328.53
1	W10176646		Panel, Control (oxide)		Appelez-nous	-
2	W10164576		Knob, Control				$ 56.77
3	W11230114		Screw   (Replaces: 8540513)				$ 13.28
4	W10172298		Bushing, Knob				$ 13.40
5	W10164567		Light Guide, Cycle				$ 68.85
6	W10164542		User Interface,				$ 306.78
7	WP8540282		Screw   (Replaces: 8540282)				$ 11.56
8	8572039		Seal, User Interface		Appelez-nous	-
9	W10170293		Light Guide - Cycle, Internal				$ 89.82
10	W10170295		Frame-light Guide		Appelez-nous	-
11	W10171504		Foil-display				$ 13.42
12	W10164578		Light Guide - 3 Digit Display				$ 15.96
13	W10171502		Frame-light (guide Display)				$ 16.12
14	W10167292		Harness, Wiring (user Interface)				$ 163.94
15	W10059240		Brace, Front Top				$ 194.85
16	W10003700		Channel, Water		Appelez-nous	-
17	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 10.94
18	W10167278		Harness, Wiring (upper Main)				$ 341.09
19	W10175770		Microcomputer, Machine Control		Appelez-nous	-
