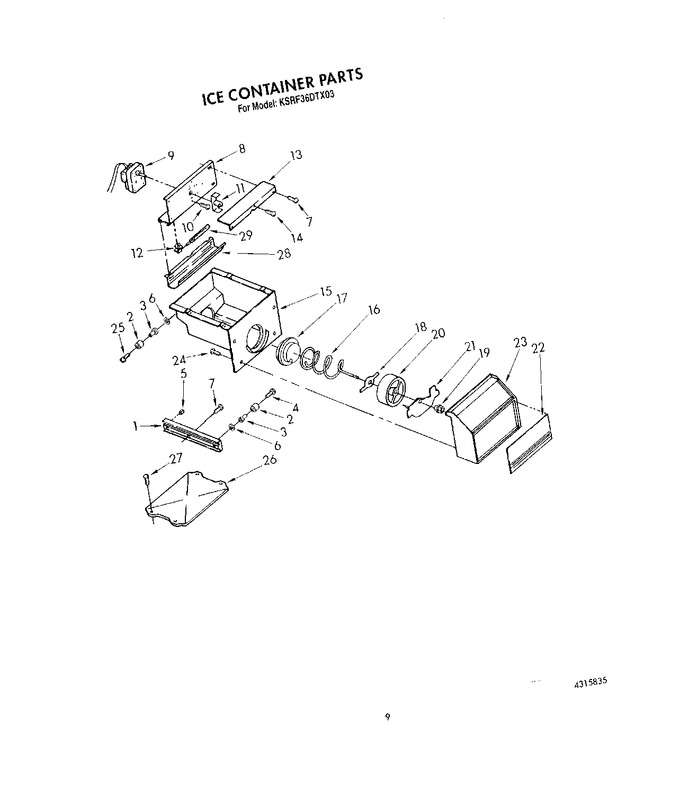

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1112281 | Spacer, Track (right Side) |
|
- | |||||
| 1 | 1112282 | Spacer, Track (left Side) |
|
- | |||||
| 2 | 1112638 | Roller |
|
- | |||||
| 3 | 1112639 | Eyelet, Roller |
|
- | |||||
| 4 | WP489261 | Screw, 10-16 X 5/8 (Replaces: 489212) |
|
$ 8.33 | |||||
| 5 | 1113169 | Stop, Roller |
|
$ 11.28 | |||||
| 6 | 488307 | Washer |
|
- | |||||
| 7 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 7 | WP681414 | Screw (repair) (Replaces: 488908) |
|
Immediately | $ 8.47 | ||||
| 8 | 1112291 | Bracket, Motor |
|
- | |||||
| 9 | 851152 | Motor Assembly |
|
- | |||||
| 10 | 303776 | Screw, 8-32 X 5/16 (Replaces: 488906) |
|
- | |||||
| 11 | WPW10169511 | Coupling, Motor (Replaces: 983663) |
|
$ 24.51 | |||||
| 12 | 1112613 | Socket, Light |
|
- | |||||
| 13 | 1113128 | Cover, Motor |
|
- | |||||
| 14 | 00487294 | Screw, 8-32 X 3/8 (Replaces: 487294) |
|
$ 175.09 | |||||
| 15 | 1112285 | Ice Container |
|
- | |||||
| 16 | 1112378 | Conveyor |
|
- | |||||
| 17 | W10749708 | Coupling, Conveyor (Replaces: 983668) |
|
$ 27.44 | |||||
| 18 | 4388736 | Drive Bar, Drum (Replaces: 946192) |
|
$ 96.97 | |||||
| 19 | 946195 | Nut, Bearing |
|
- | |||||
| 20 | 4388736 | Drum (Replaces: 946193) |
|
$ 96.97 | |||||
| 21 | 946194 | Baffle |
|
- | |||||
| 22 | 1112385 | Overlay, Cover |
|
- | |||||
| 23 | 1112380 | Front Cover |
|
- | |||||
| 24 | WP488787 | Screw, 8-18 X 1/2 (5) (Replaces: 488886) |
|
$ 11.26 | |||||
| 25 | WPW10272364 | Screw, 10-16 X 3/4 (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 26 | 1112582 | Baffle, Ice Container |
|
- | |||||
| 27 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 489189) |
|
Immediately | $ 8.28 | ||||
| 28 | 1113138 | Lens, Dispenser |
|
- | |||||
| 29 | WP548049 | Light Bulb (Replaces: 547225) |
|
$ 90.67 |
