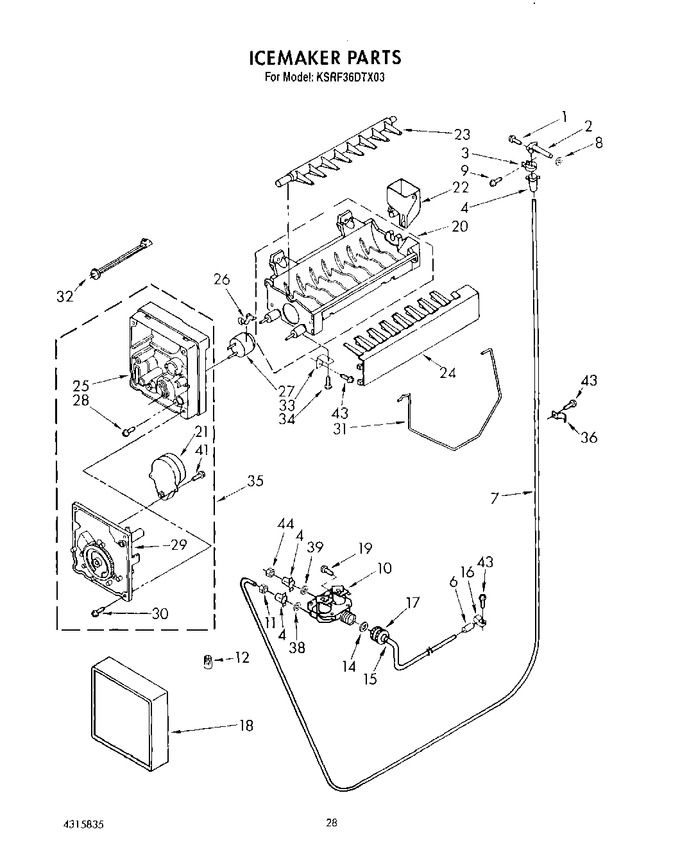

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 2 | WP2196157 | Fitting, Water Tube (Replaces: 1112845) |
|
Immediately | $ 12.59 | ||||
| 3 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 12.18 | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 8.23 | |||||
| 6 | WP2158826 | Dampener (Replaces: 836074) |
|
$ 1.82 | |||||
| 7 | W10823511 | Tube, Water (Replaces: 1112556) |
|
Immediately | $ 32.41 | ||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 9 | WP489069 | Screw, 8 X 1/2 (2) (Replaces: 488645) |
|
Immediately | $ 8.40 | ||||
| 10 | 1113103 | Valve, Solenoid |
|
- | |||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 11.51 | |||||
| 12 | 227991 | Connector Wire |
|
- | |||||
| 14 | WP16123 | Washer (Replaces: 488292) |
|
$ 8.16 | |||||
| 15 | 1113106 | Tube, Inlet Valve |
|
- | |||||
| 16 | 1113066 | Clamp Tube |
|
- | |||||
| 17 | 537588 | Nut, Valve |
|
- | |||||
| 18 | 627356 | Cover |
|
- | |||||
| 19 | 00487294 | Screw, 8-32 X 3/8 (2) (Replaces: 487294) |
|
$ 175.09 | |||||
| 20 | WPW10190929 | Mold & Heater (also Order) (Replaces: 628189) |
|
$ 233.15 | |||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 21 | W10190935 | Motor (Replaces: 627811) |
|
Immediately | $ 110.07 | ||||
| 22 | WP628356 | Bearing & Inlet (Replaces: 627791) |
|
$ 53.75 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 627788) |
|
$ 90.35 | |||||
| 25 | WP2195914 | Support (Replaces: 627790) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 11.60 | |||||
| 27 | 542639 | Cement Alumilastic) |
|
- | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 627985) |
|
$ 114.64 | |||||
| 28 | 489258 | Screw, 10-32 X 49/64 |
|
- | |||||
| 29 | W10190935 | Module, Assembly (Replaces: 628247) |
|
Immediately | $ 110.07 | ||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 627913) |
|
Immediately | $ 63.21 | ||||
| 32 | 1112980 | Harness, Wiring |
|
- | |||||
| 33 | WP2256087 | Bracket (Replaces: 627915) |
|
$ 97.65 | |||||
| 34 | 00489128 | Screw, 8-32 X 27/64 (Replaces: 489128) |
|
$ 859.97 | |||||
| 35 | W10190935 | Module Assembly (includes Items 21, 25, 28, 29, 30 & 41) (Replaces: 483042) |
|
Immediately | $ 110.07 | ||||
| 36 | 1112847 | Tube Clamp (4) |
|
- | |||||
| 38 | 488794 | ``o`` Ring |
|
- | |||||
| 39 | 00753257 | ``o`` Ring (Replaces: 488819) |
|
Immediately | $ 295.49 | ||||
| 41 | 489136 | Screw, (2) 3-24 X 3/8 |
|
$ 10.80 | |||||
| 43 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 44 | 1108005 | Nut, Compression |
|
- |
