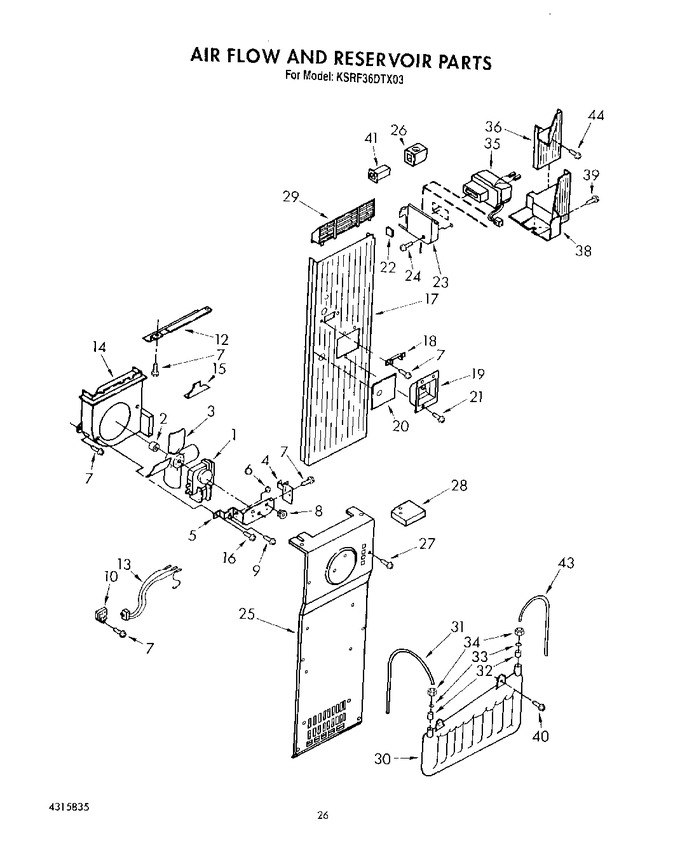

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SM999 | Fan, Motor (Replaces: 945523) |
|
Immediately | $ 30.26 | ||||
| 2 | 992953 | Ring, Compression |
|
- | |||||
| 3 | 992920 | Blade, Fan |
|
$ 39.91 | |||||
| 4 | 548263 | Bracket (double) |
|
- | |||||
| 5 | 938224 | Bracket (single) |
|
- | |||||
| 6 | 548268 | Grommet |
|
- | |||||
| 7 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 7 | WP681414 | Screw (repair) (Replaces: 488908) |
|
Immediately | $ 8.47 | ||||
| 8 | 538449 | Grommet, Screw |
|
- | |||||
| 9 | WP489128 | Screw, Ground (Replaces: 488500) |
|
$ 11.40 | |||||
| 10 | 942842 | Terminal Block |
|
- | |||||
| 12 | 1112729 | Channel, Wiring |
|
- | |||||
| 13 | 1112703 | Wiring Harness, Fan Motor |
|
- | |||||
| 14 | 1111212 | Scroll, Fan (also Order Item 15) |
|
- | |||||
| 15 | 1112976 | Shield, Scroll |
|
- | |||||
| 16 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 17 | 1112855 | Assembly, Air Duct |
|
- | |||||
| 18 | 1112868 | Air Deflector, Icemaker |
|
- | |||||
| 19 | 1112870 | Cup, Motor |
|
- | |||||
| 20 | 1112882 | Shield |
|
- | |||||
| 21 | 1112871 | Fastener (3) |
|
- | |||||
| 22 | 1112869 | Gasket, Air Baffle |
|
- | |||||
| 23 | 1112850 | Cover, Air Outlet |
|
- | |||||
| 24 | 488748 | Screw, 8-32 X 1-1/2 |
|
- | |||||
| 25 | 1112275 | Cover, Evaporator |
|
- | |||||
| 26 | 1112565 | Connector, Meat Pan Duct |
|
- | |||||
| 27 | WP488729 | Screw, 8 X 1/2 (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 28 | 1112840 | Baffle, Evaporator |
|
- | |||||
| 29 | 1112851 | Diffuser, Air Duct |
|
- | |||||
| 30 | WP2256126 | Reservior, Water (Replaces: 839912) |
|
$ 177.29 | |||||
| 31 | W10823511 | Water Tube (inlet) (Replaces: 1113158) |
|
Immediately | $ 32.41 | ||||
| 32 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 8.23 | |||||
| 33 | 00753257 | ``o`` Ring Seal (Replaces: 488819) |
|
Immediately | $ 295.49 | ||||
| 34 | 488795 | Compression Nut |
|
- | |||||
| 35 | 1112875 | Assembly, Air Baffle |
|
- | |||||
| 36 | 1113147 | Insulation, Air Diffuser |
|
- | |||||
| 38 | 1112878 | Cover, Air Diffuser |
|
- | |||||
| 39 | WP489174 | Screw, 8 X 2 (Replaces: 489174) |
|
$ 7.30 | |||||
| 40 | 488775 | Screw |
|
- | |||||
| 41 | 1112265 | Tube, Meat Pan |
|
- | |||||
| 43 | W10823511 | Water Tube (outlet) (Replaces: 1113159) |
|
Immediately | $ 32.41 | ||||
| 44 | WP488163 | Screw, 8 X 3/4 (Replaces: 488248) |
|
$ 7.92 |
