SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker Trim


03 - Refrigerator Liner


04 - Freezer Liner


05 - Ice Container


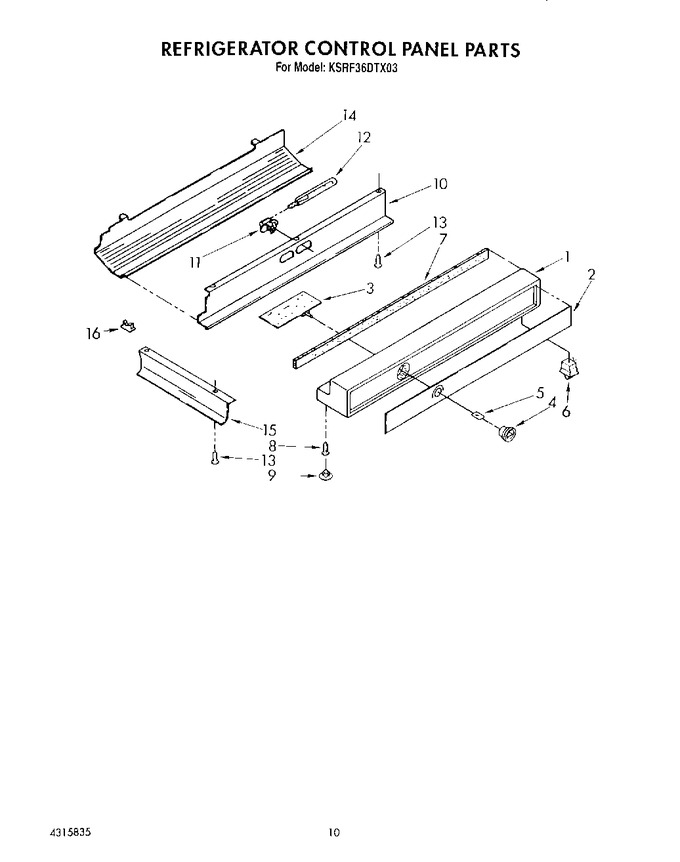

06 - Refrigerator Control Panel


07 - Freezer Control Panel


08 - Refrigerator Shelf


09 - Freezer Shelf


10 - Refrigerator Door, Lit/optional


11 - Freezer Door


12 - Dispenser And Front


13 - Upper Unit


14 - Lower Unit And Tube


15 - Air Flow And Reservoir


16 - Icemaker


17 - Top Grille And Unit Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112640		Control Panel		Appelez-nous	-
2	1113378		Inlay, Control Panel		Appelez-nous	-
3	1113226		Circuit Board		Appelez-nous	-
4	1116853		Knob, Air Control		Appelez-nous	-
5	837444		Knob, Retainer		Appelez-nous	-
6	W11384469		Switch, Rocker Arm   (Replaces: 549702)			Immediately	$ 39.09
7	1113133		Seal, Control Panel		Appelez-nous	-
8	489260		Screw (3)		Appelez-nous	-
9	534927		Hole Plug (3)		Appelez-nous	-
10	1112655		Shield, Control Panel		Appelez-nous	-
11	1112613		Socket, Light (2)		Appelez-nous	-
12	WP548049		Light Bulb (2)   (Replaces: 547225)				$ 90.67
13	WP681414		Screw (repair)   (Replaces: 488908)			Immediately	$ 8.47
13	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
14	1112660		Lens		Appelez-nous	-
15	1112708		Channel, Wiring		Appelez-nous	-
16	1115375		Clip, Wiring (2)				$ 11.15

    View Diagram in Separate Window       Print Part List
