SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Refrigerator Door


05 - Freezer Door


06 - Freezer Interior , Lit/optional


07 - Dispenser Front


08 - Airflow And Reservoir


09 - Refrigerator Interior


10 - Unit


11 - Ice Maker


12 - Air Flow And Control

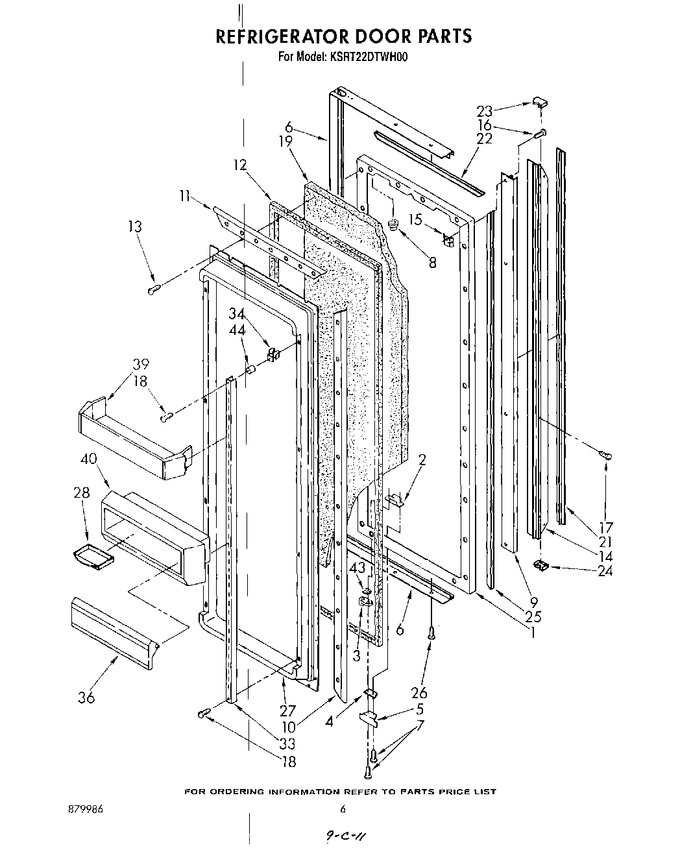

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1117731		Refrigerator, Door Panel (almond)		Appelez-nous	-
1	1117733		Refrigerator, Door Panel (platinum (also Order Item 19 When Replaceing Door))		Appelez-nous	-
1	1117732		Refrigerator, Door Panel (toast)		Appelez-nous	-
1	1117729		Refrigerator, Door Panel (white)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 29.74
4	988421		Shim		Appelez-nous	-
5	1115906		Bracket, Door Stop		Appelez-nous	-
6	1117734		Trim, Door		Appelez-nous	-
7	WP488921		Screw   (Replaces: 489220)			Immediately	$ 8.24
7	489221		Screw (repair)		Appelez-nous	-
8	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
9	1107860		Retainer, Handle		Appelez-nous	-
10	836120		Retainer, Side		Appelez-nous	-
11	836121		Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 939565)				$ 269.26
13	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
13	WP489069		Screw, No.7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
14	1107830		Handle, Door		Appelez-nous	-
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	WPW10141645		Screw, 8 X 1/2 (4)   (Replaces: 489084)				$ 8.05
17	WP8281206		Screw (4)   (Replaces: 489028)				$ 8.37
18	489188		Screw, 8-15 X 1-1/4 (10)		Appelez-nous	-
19	876029		Kit, Foam Slab		Appelez-nous	-
21	1117737		Insert, Handle		Appelez-nous	-
22	1117738		Trim, Push-in Top & Bottom (2)		Appelez-nous	-
23	1107843		End Cap, Top		Appelez-nous	-
24	1107849		End Cap, Bottom		Appelez-nous	-
25	1117739		Trim, Push-in Side (2)		Appelez-nous	-
26	489112		Screw, 6-32 X 1/2 (8)		Appelez-nous	-
27	1107268		Interior Door, Panel		Appelez-nous	-
28	520747		Tray, Butter		Appelez-nous	-
33	1107295		Shelf Ladder (2)		Appelez-nous	-
34	537095		Clip, Expansion		Appelez-nous	-
36	1107289		Door, Utility		Appelez-nous	-
39	1107310		Door Shelf,		Appelez-nous	-
40	1107284		Bin, Utility		Appelez-nous	-
43	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
44	1107352		Spacer, Shelf Ladder (10)		Appelez-nous	-
