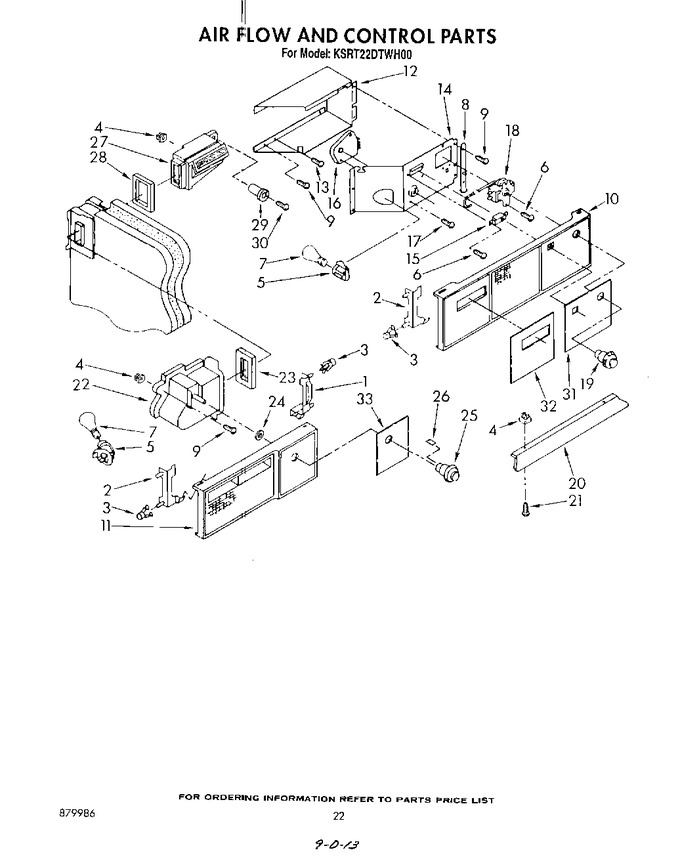

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842355		Support, Light Lens (r.s.)		Appelez-nous	-
2	842356		Support, Light Lens (l.s.) (2)		Appelez-nous	-
3	843945		Clip, Tubular (6)		Appelez-nous	-
4	842339		Grommet		Appelez-nous	-
5	4387478		Socket, Light (2)   (Replaces: 851067)			Immediately	$ 115.67
6	WP489128		Screw, 8-32 X 3/8 (4)   (Replaces: 488500)				$ 11.40
7	8009		Light Bulb (2)   (Replaces: 527949)			Immediately	$ 18.67
8	984552		Support, Light Lens (r.s.)		Appelez-nous	-
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
10	1106241		Light, Lens		Appelez-nous	-
11	1106242		Light Lens, Freezer		Appelez-nous	-
12	984550		Box, Control		Appelez-nous	-
13	488474		Screw, 8-32 X 3/8		Appelez-nous	-
14	934045		Control, Front		Appelez-nous	-
15	938049		Bracket, Switch		Appelez-nous	-
16	W10822278		Defrost, Timer (10 Hour)   (Replaces: 943435)			Immediately	$ 34.44
17	WP3388228		Screw, 6-20 X 3/8 (2)   (Replaces: 488911)				$ 7.30
18	WP4317800		Thermostat & Barrier   (Replaces: 1107261)			Immediately	$ 278.68
19	836482		Knob, Temperature Control		Appelez-nous	-
20	836216		Baffle, Liner		Appelez-nous	-
21	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
22	841269		Air Scoop (includes Illus. 23)		Appelez-nous	-
23	844871		Gasket Scoop		Appelez-nous	-
24	938439		Retainer, Damper		Appelez-nous	-
25	837445		Control Knob		Appelez-nous	-
26	837444		Knob, Retainer		Appelez-nous	-
27	946145		Air Diffuser Assembly		Appelez-nous	-
28	842394		Gasket Diffuser		Appelez-nous	-
29	836667		Spacer		Appelez-nous	-
30	488357		Screw, 8 X 1-1/4		Appelez-nous	-
31	1107357		Overlay, Light Lens (r.s)		Appelez-nous	-
32	1107007		Overlay, Light Lens (l.s)		Appelez-nous	-
33	1107393		Overlay, Light Lens (freezer)		Appelez-nous	-
