SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Refrigerator Door


05 - Freezer Door

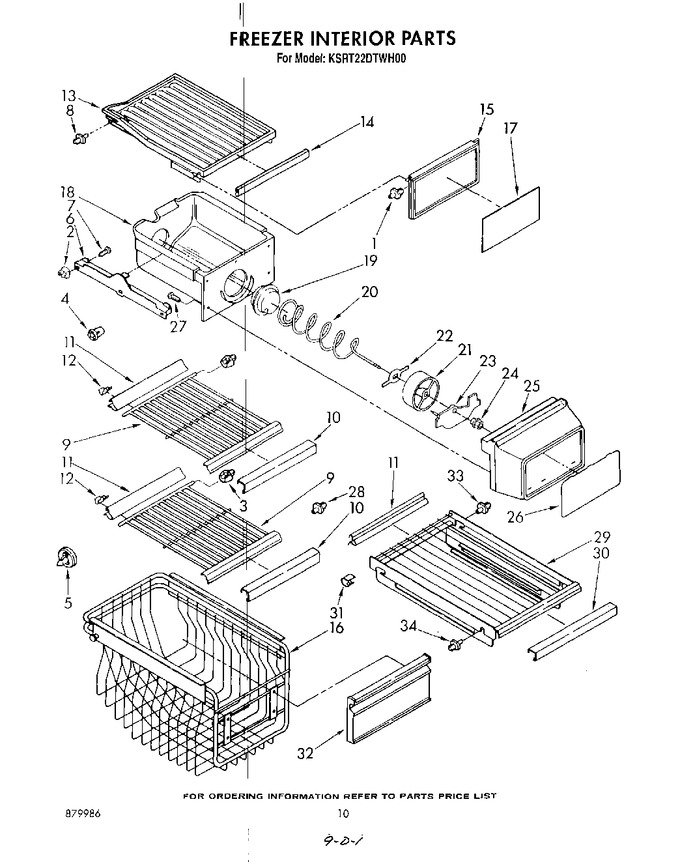

06 - Freezer Interior , Lit/optional


07 - Dispenser Front


08 - Airflow And Reservoir


09 - Refrigerator Interior


10 - Unit


11 - Ice Maker


12 - Air Flow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	536410		Stud, Door Stop		Appelez-nous	-
2	842339		Grommet		Appelez-nous	-
3	210518		Shelf Support		Appelez-nous	-
4	533881		Grommet		Appelez-nous	-
5	512900		Retainer Stud		Appelez-nous	-
6	1115383		Slide, Freezer Bin (2)		Appelez-nous	-
7	487979		Screw, 8 X 1 (4)		Appelez-nous	-
8	521878		Stud Shelf		Appelez-nous	-
9	1107098		Shelf, Freezer		Appelez-nous	-
10	1107108		Trim, Shelf		Appelez-nous	-
11	1107110		Reflector, Shelf		Appelez-nous	-
12	1107450		Clip, Reflector (2)		Appelez-nous	-
13	938551		Solid Shelf		Appelez-nous	-
14	1106277		Trim, Shelf		Appelez-nous	-
15	1106279		Front, Ice Compartment		Appelez-nous	-
16	1107126		Freezer, Basket		Appelez-nous	-
17	1107118		Overlay, Ice Compartment		Appelez-nous	-
18	938568		Ice Container		Appelez-nous	-
19	W10749708		Coupling, Ice Conveyor   (Replaces: 983668)				$ 26.13
20	946191		Conveyor, Ice Dispenser		Appelez-nous	-
21	4388736		Ice Dispenser, Drum   (Replaces: 946193)				$ 92.35
22	4388736		Drive Bar, Drum   (Replaces: 946192)				$ 92.35
23	946194		Baffle		Appelez-nous	-
24	946195		Nut, Bearing		Appelez-nous	-
25	1106297		Front, Cover Container		Appelez-nous	-
26	1107385		Overlay, Front Cover		Appelez-nous	-
27	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
28	937513		Shelf, Stud		Appelez-nous	-
29	1107418		Shelf, Freezer Basket		Appelez-nous	-
30	1107420		Trim, Shelf Basket		Appelez-nous	-
31	1107246		Clip, Reflector		Appelez-nous	-
32	1107131		Front, Freezer Basket		Appelez-nous	-
33	1107967		Shelf, Stud		Appelez-nous	-
34	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
34	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
34	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
34	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
34	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
34	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
34	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
34	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
34	1107968		Shelf, Stud		Appelez-nous	-
34	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
34	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
34	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
34	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
34	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
34	833938		Kit, Terminal Connector				$ 8.07
34	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
34	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
34	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
34	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
34	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
34	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
34	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
34	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
34	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
34	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
	LIT879986		List, Parts		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	LIT628107		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT1117756		Care & Use Guide		Appelez-nous	-
	LIT1117304		Service & Wiring Sheet		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	LIT1117759		Energy Label		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
