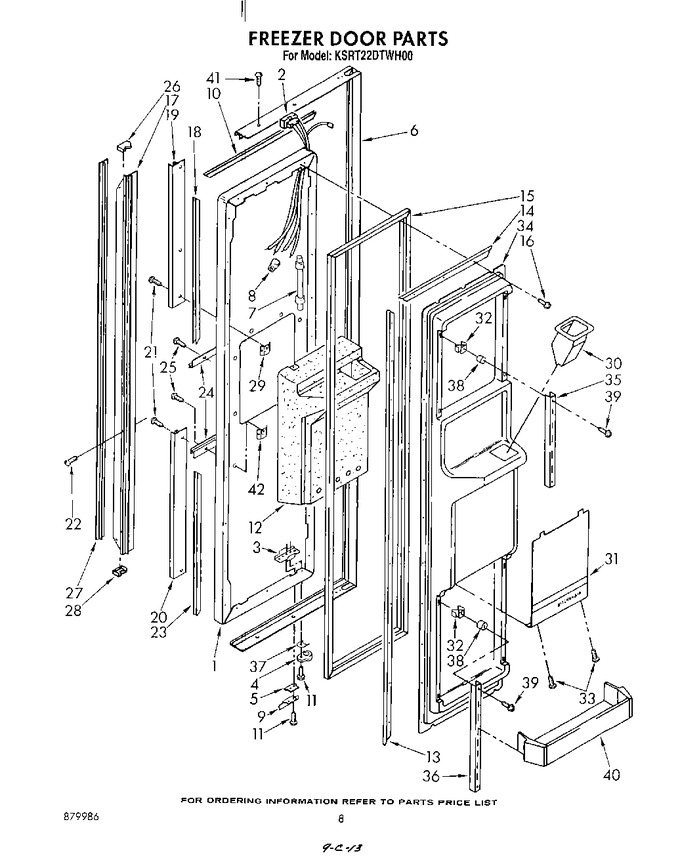

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1117746 | Exterior Door Panel Freezer (almond) |
|
- | |||||
| 1 | 1117748 | Exterior Door Panel Freezer (platinum) |
|
- | |||||
| 1 | 1117747 | Exterior Door Panel Freezer (toast) |
|
- | |||||
| 1 | 1117744 | Exterior Door Panel Freezer (white) |
|
- | |||||
| 2 | 851373 | Plug, Crossover |
|
- | |||||
| 3 | 988402 | Tap Plate |
|
- | |||||
| 4 | 4318165 | Door Closer, Upper Cam (Replaces: 1115905) |
|
Immediately | $ 27.36 | ||||
| 5 | 988421 | Shim |
|
- | |||||
| 6 | 1117735 | Trim, Door |
|
- | |||||
| 7 | 991415 | Tube, Door Wiring |
|
- | |||||
| 8 | 227991 | Wire Connector |
|
- | |||||
| 9 | 1115906 | Bracket, Door Stop |
|
- | |||||
| 10 | 1117750 | Trim, Push-in (4) |
|
- | |||||
| 11 | 489221 | Screw (repair) |
|
- | |||||
| 11 | WP488921 | Screw (Replaces: 489220) |
|
Immediately | $ 7.75 | ||||
| 12 | 938649 | Insulation, Dispenser |
|
- | |||||
| 13 | 836120 | Retainer, Gasket (side) (2) |
|
- | |||||
| 14 | 836122 | Retainer, Gasket Top & Bottom (2) |
|
- | |||||
| 15 | 2188405A | Door, Gasket Magnetic (Replaces: 939566) |
|
$ 351.08 | |||||
| 16 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 7.86 | ||||
| 16 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.85 | ||||
| 17 | 1107826 | Handle, Door |
|
- | |||||
| 18 | 1117751 | Trim, Push-in Upper Sides (2) |
|
- | |||||
| 19 | 1107825 | Retainer, Handle (top) |
|
- | |||||
| 20 | 1107829 | Retainer, Handle (bottom) |
|
- | |||||
| 21 | WPW10141645 | Screw, 8 X 1/2 (4) (Replaces: 489084) |
|
$ 7.67 | |||||
| 22 | WP8281206 | Screw, 8-15 X 1/2 (4) (Replaces: 489028) |
|
$ 7.94 | |||||
| 23 | 1117752 | Trim, Push-in Lower Sides (2) |
|
- | |||||
| 24 | 1117736 | Trim, Dispenser |
|
- | |||||
| 25 | 488927 | Screw, 8-32 X 5/8 (4) |
|
- | |||||
| 26 | 1107848 | End Cap, Top |
|
- | |||||
| 27 | 1117737 | Insert, Handle |
|
- | |||||
| 28 | 1107844 | End Cap, Bottom |
|
- | |||||
| 29 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.50 | |||||
| 30 | 987188 | Ice Chute |
|
- | |||||
| 31 | 1107376 | Overlay, Ice Dispenser |
|
- | |||||
| 32 | 537095 | Expansion Clip |
|
- | |||||
| 33 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 7.79 | ||||
| 34 | 1107363 | Interior, Door Panel |
|
- | |||||
| 35 | 1107372 | Door Shelf, Ladder (top) |
|
- | |||||
| 36 | 1107374 | Door Shelf, Ladder (bottom) |
|
- | |||||
| 37 | WP1104787 | Shim, Door Closer (Replaces: 1104787) |
|
$ 7.58 | |||||
| 38 | 1107352 | Spacer, Shelf Ladder (8) |
|
- | |||||
| 39 | 489188 | Screw, 8-15 X 1 1/4 (8) |
|
- | |||||
| 40 | 1107368 | Door Shelf, Cantilever (4) |
|
- | |||||
| 41 | 489112 | Screw, 6-32 X 1/2 (7) |
|
- | |||||
| 42 | 941242 | Screw Anchor (2) |
|
- |
