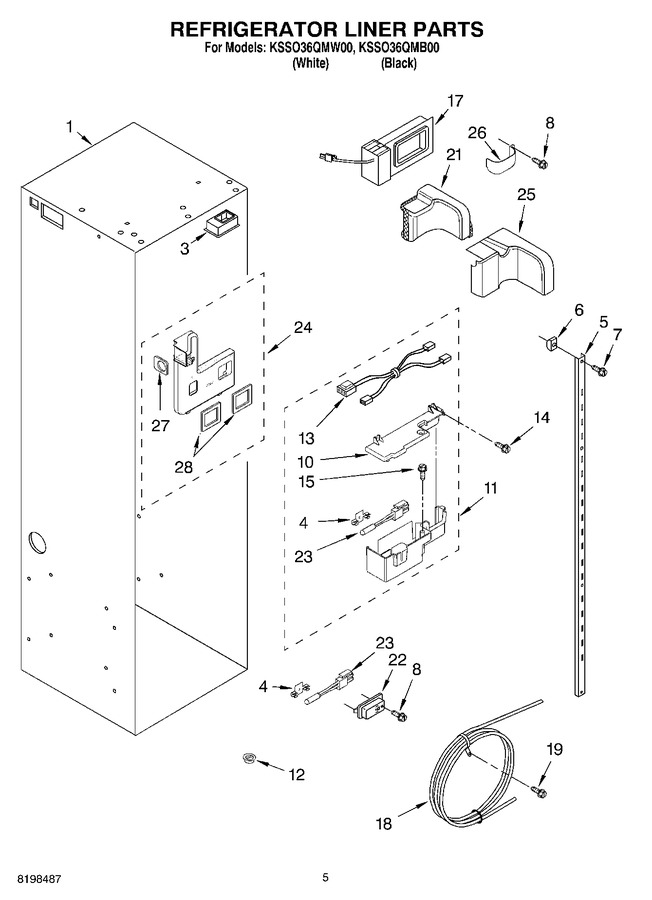

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	2208970		Air Duct				$ 144.19
4	2209204		Clip, Thermistor		Appelez-nous	-
5	WP2259077		Ladder, Shelf (2)   (Replaces: 2259077)				$ 78.63
6	520965		Screw Support, Ladder (8)				$ 29.86
7	2006475		Screw,		Appelez-nous	-
8	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.79
10	2257528		Lid, Meat Pan Baffle		Appelez-nous	-
11	2257526		Baffle Control Assembly		Appelez-nous	-
12	2171846		Release Valve				$ 18.99
13	2187619		Jumper, Air Baffle		Appelez-nous	-
14	488357		Screw		Appelez-nous	-
15	W11624204		Screw   (Replaces: 486194)				$ 14.02
17	WP2221296		Air Baffle Assembly   (Replaces: 2221296)			Immediately	$ 392.93
18	WP2256126		Reservoir   (Replaces: 2209687)				$ 168.85
19	488280		Screw		Appelez-nous	-
21	2208997		Diffuser Assembly		Appelez-nous	-
22	1116793		Cover, Thermistor				$ 14.63
23	WP2188820		Thermistor   (Replaces: 2213442)			Immediately	$ 30.85
24	2259372		Spacer, Air Baffle		Appelez-nous	-
25	2309087		Cover, Diffuser   (Replaces: 2215728)		Appelez-nous	-
26	2259066		Cover, Air Return		Appelez-nous	-
27	2259412		Seal, Air Duct (round Hole)		Appelez-nous	-
28	2259398		Seal, Air Duct (square Hole)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
