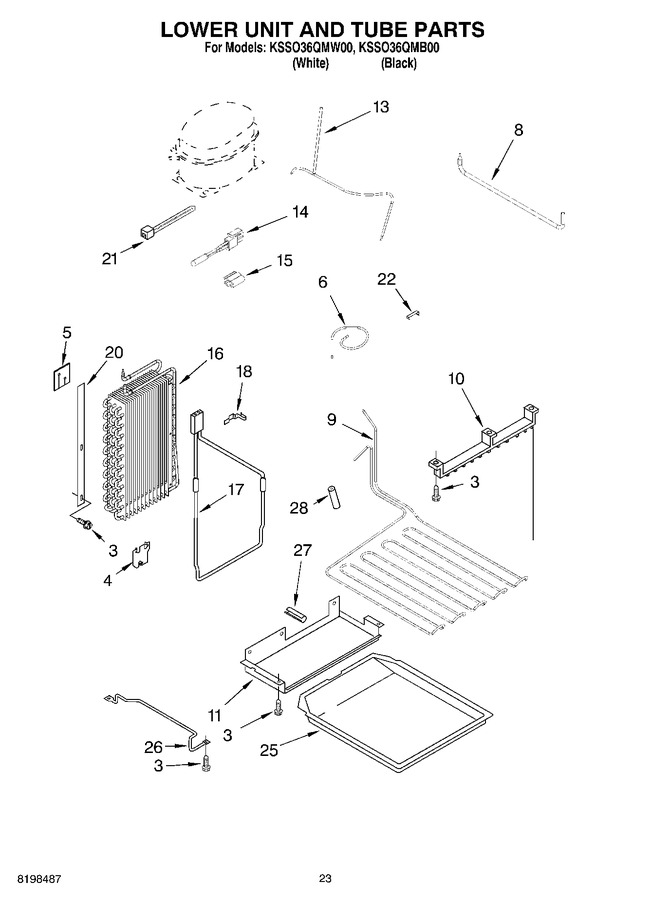

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2215508		Bracket		Appelez-nous	-
5	2259244		Side Support		Appelez-nous	-
6	2259303		Suction Tube				$ 32.51
8	2300191		Tube, Connect (drier/restrictor)		Appelez-nous	-
9	2259329		Heater, Drain Pan		Appelez-nous	-
10	2209450		Hanger, Heater		Appelez-nous	-
11	2005908		Shield, Drain Pan		Appelez-nous	-
13	2259352		Tube, Discharge		Appelez-nous	-
14	WP2188820		Thermistor   (Replaces: 2213442)			Immediately	$ 30.85
15	2257639		Clip, Thermistor		Appelez-nous	-
16	WP2306092		Evaporator   (Replaces: 2259029)			Immediately	$ 364.99
17	2006749		Heater, Defrost		Appelez-nous	-
18	1113048		Clamp, Heater (2)		Appelez-nous	-
20	2220832		Gasket, Evaporator		Appelez-nous	-
21	WPW10339879		Wire Tie   (Replaces: 857547)				$ 8.30
22	W10169509		Clip, Heat Exchanger   (Replaces: 2215691)		Appelez-nous	-
25	WP2001264		Drain Pan   (Replaces: 2001264)				$ 277.18
26	1113206		Bracket, Drain Pan (left)		Appelez-nous	-
26	1113207		Bracket, Drain Pan (right)		Appelez-nous	-
27	WP2158826		Dampener   (Replaces: 513942)				$ 1.82
28	2215648		Damper, Heater				$ 13.21

    View Diagram in Separate Window       Print Part List
