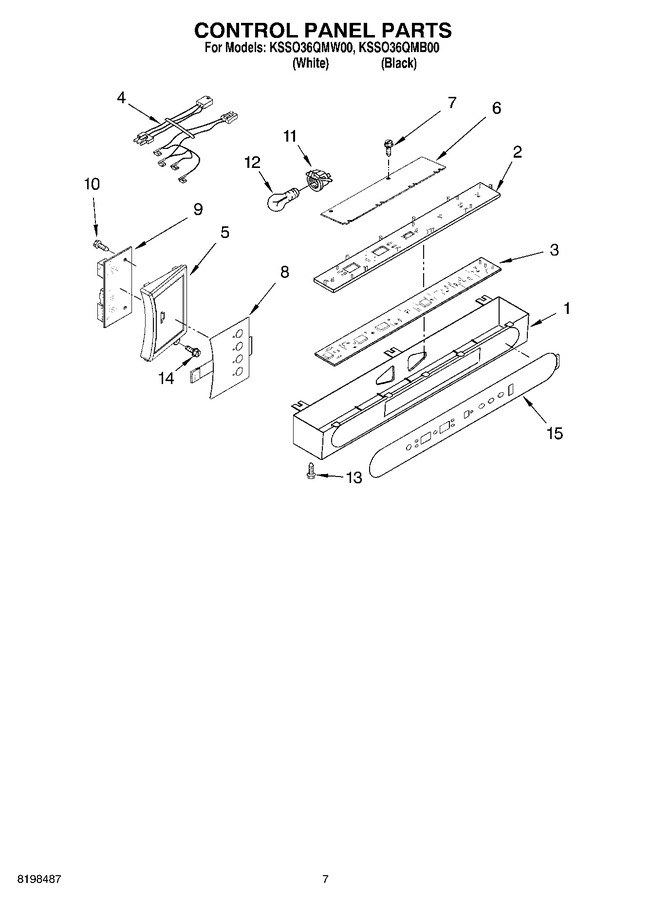

05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215715		Control Box		Appelez-nous	-
2	2215670		Insert, Control Box		Appelez-nous	-
3	2252110		Circuit Board, Housing Control		Appelez-nous	-
4	2187424		Control Box Wire Harness		Appelez-nous	-
5	2258914		Panel Control, Meat Pan		Appelez-nous	-
6	2221121		Support, Control Box		Appelez-nous	-
7	WP488920		Screw (2)   (Replaces: 489006)				$ 7.98
8	2252067		Touch Pad, Meat Pan		Appelez-nous	-
9	WP2306086		Display Board Temp Controlled Pan   (Replaces: 2252068)				$ 333.46
10	2302712		Clip, Retainer		Appelez-nous	-
11	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
12	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
13	W11624204		Screw   (Replaces: 486194)				$ 14.72
14	WPW10142283		Screw   (Replaces: 8281185)				$ 10.33
15	2257518		Overlay		Appelez-nous	-
