SELECT A DIAGRAM
New Model Search:

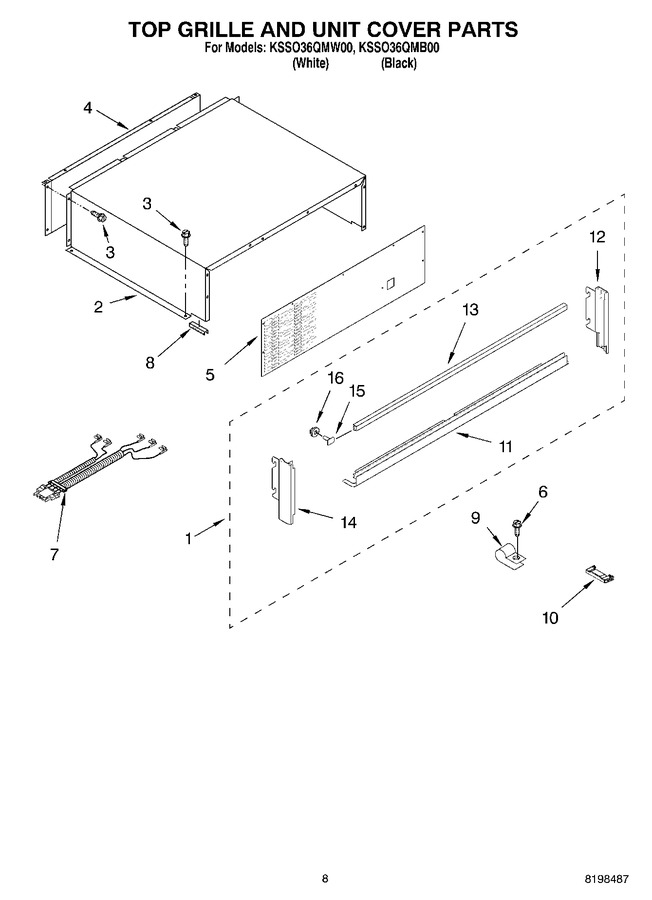

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259422W | Top Grille Assembly (white) |
|
- | |||||
| 1 | 2259422B | Top Grille Assembly (black) |
|
- | |||||
| 2 | 2259320 | Cover, Unit |
|
- | |||||
| 3 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 4 | 2256466 | Back Panel |
|
$ 311.64 | |||||
| 5 | 2259095 | Cover-unit, Front |
|
- | |||||
| 6 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 10.72 | ||||
| 7 | 2187429 | Wire Assembly Rc/fc Light Switch |
|
- | |||||
| 8 | 2215910 | Grommet, Flexible |
|
$ 89.83 | |||||
| 9 | 489348 | Clamp |
|
- | |||||
| 10 | 2221297 | Enclosure, Connector |
|
- | |||||
| 11 | 2259434B | Trim-grille, Bottom (black) |
|
- | |||||
| 11 | 2259434W | Trim-grille, Bottom (white) |
|
- | |||||
| 12 | 2259420W | Trim-grille, Right Side (white) |
|
- | |||||
| 12 | 2259420B | Trim-grille, Right Side (black) |
|
- | |||||
| 13 | 2259440W | Trim-grille, Top (white) |
|
- | |||||
| 13 | 2259440B | Trim-grille, Top (black) |
|
- | |||||
| 14 | 2259421B | Trim-grille, Left Side (black) |
|
- | |||||
| 14 | 2259421W | Trim-grille, Left Side (white) |
|
- | |||||
| 15 | 2003347 | Screw |
|
$ 14.28 | |||||
| 16 | WP488130 | Nut (Replaces: 1161548) |
|
$ 6.97 |
