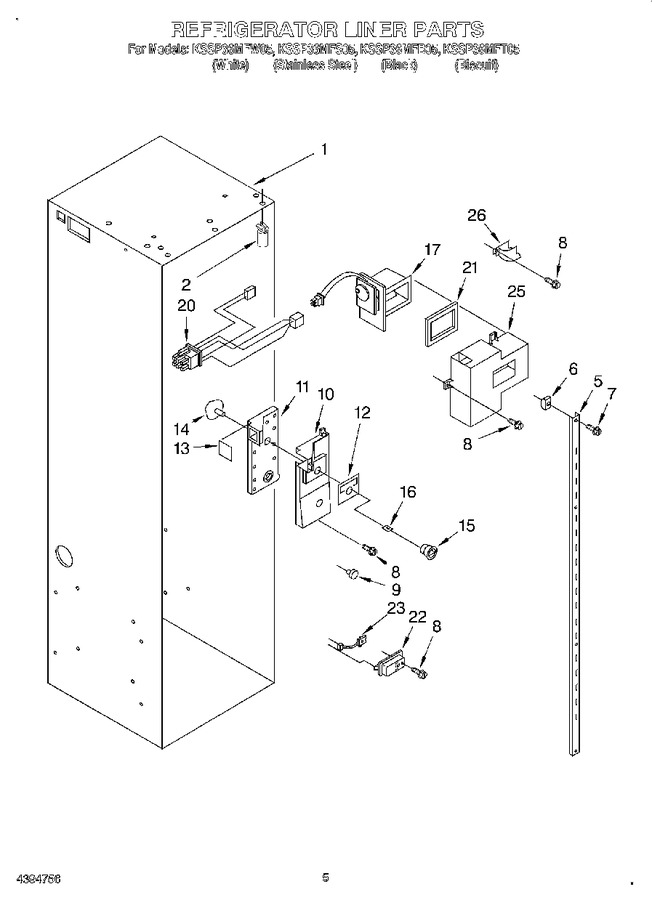

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1112591		Spacer, Control Panel (3)		Appelez-nous	-
5	2001117		Ladder, Shelf (2)		Appelez-nous	-
6	520965		Screw Support, Ladder (8)				$ 29.86
7	488357		Screw		Appelez-nous	-
8	W11624204		Screw   (Replaces: 486194)				$ 14.02
9	1112257		Hole Plug		Appelez-nous	-
10	2003579		Meat Pan, Air Duct Cover		Appelez-nous	-
11	2000337		Meat Pan, Air Duct		Appelez-nous	-
12	2003299		Inlay, Control Meat Pan		Appelez-nous	-
13	2001326		Seal, Air Duct		Appelez-nous	-
14	1112218		Damper Control, Meat Pan				$ 8.51
15	2003811		Control Knob, Meat Pan		Appelez-nous	-
16	2003841		Retainer, Knob		Appelez-nous	-
17	2004484		Air Baffle Assembly		Appelez-nous	-
20	2001073		Wiring Harness, Air Baffle		Appelez-nous	-
21	2001146		Seal		Appelez-nous	-
22	1116793		Cover, Thermistor				$ 14.63
23	1116959		Thermistor				$ 50.88
25	2003578		Air Baffle Cover		Appelez-nous	-
26	2003577		Guard, Air Return		Appelez-nous	-
