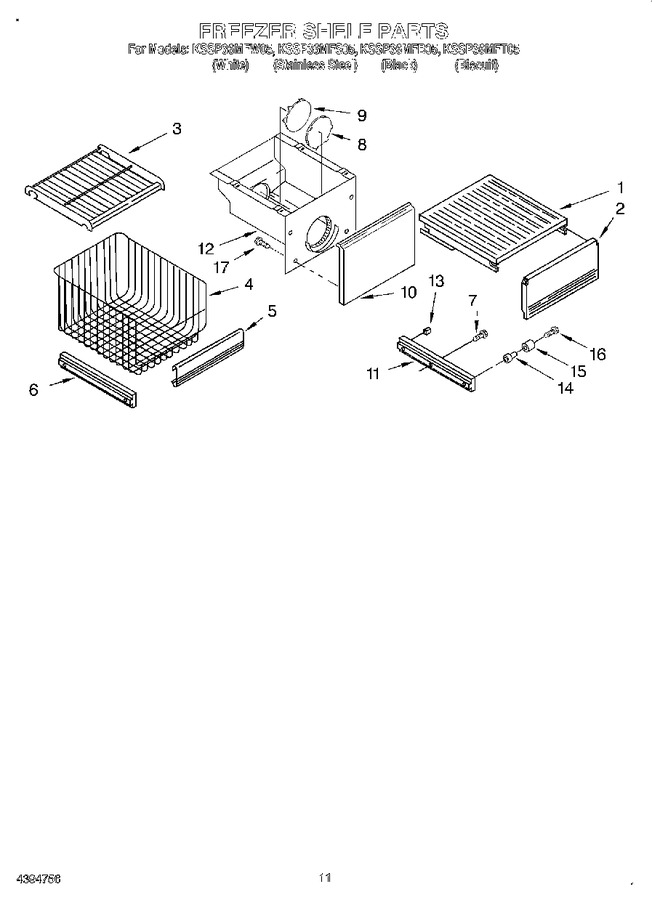

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003142		Solid Shelf		Appelez-nous	-
2	2003133		Front, Ice Compartment				$ 3.79
3	1113564		Shelf, Fixed (1)		Appelez-nous	-
3	1113636		Shelf, Deep (2)		Appelez-nous	-
4	2001551		Basket		Appelez-nous	-
5	2003112		Trim, Basket		Appelez-nous	-
6	2000061		Slide, Basket (right Side)		Appelez-nous	-
6	2000062		Slide, Basket (left Side)		Appelez-nous	-
7	W11624204		Screw   (Replaces: 486194)				$ 14.02
8	2003046		Hole Plug, Front				$ 78.19
9	2003047		Hole Plug, Rear				$ 19.73
10	2003043		Front Cover Slide, Container		Appelez-nous	-
11	2002720		Slide, Container (right Side)		Appelez-nous	-
11	2002721		Slide, Container (left Side)		Appelez-nous	-
12	2002725		Ice Container		Appelez-nous	-
13	1113169		Stop, Roller				$ 11.28
14	2174478		Eyelet, Roller				$ 5.70
15	2174388		Roller		Appelez-nous	-
16	WPW10272364		Screw   (Replaces: 2003478)			Immediately	$ 10.82
17	WP488787		Screw   (Replaces: 488886)				$ 10.58
