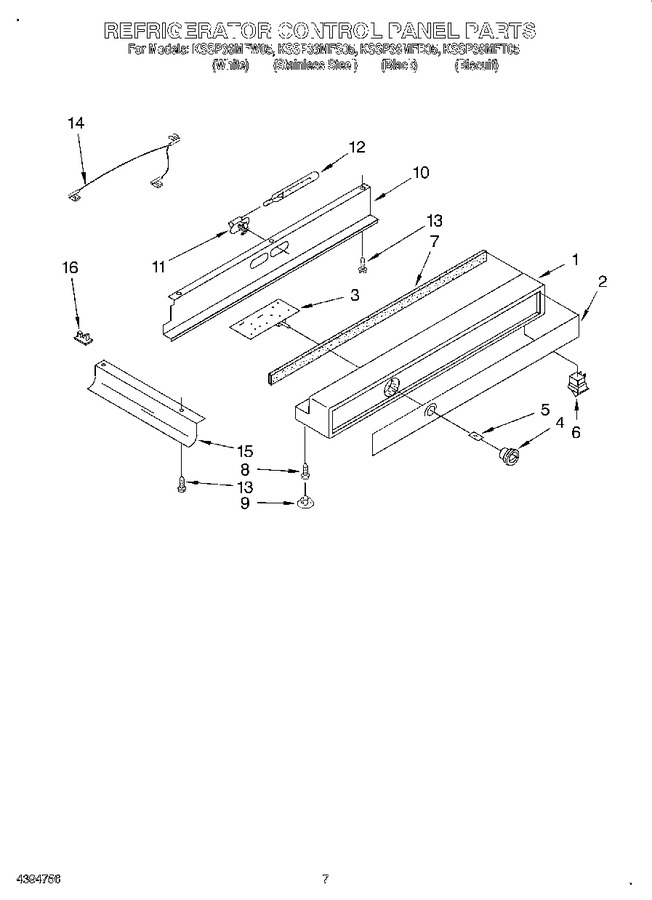

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1112640 | Control Panel |
|
- | |||||
| 2 | 2003301 | Inlay, Control Panel |
|
- | |||||
| 3 | 2004005 | Circuit Board |
|
- | |||||
| 4 | 2003842 | Control Knob |
|
- | |||||
| 5 | 2003841 | Retainer, Knob |
|
- | |||||
| 6 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 7 | 1113133 | Seal, Control Panel |
|
- | |||||
| 8 | 489260 | Screw (3) |
|
- | |||||
| 9 | 2000153 | Hole Plug (3) |
|
- | |||||
| 10 | 1113773 | Shield, Control Panel |
|
- | |||||
| 11 | 1112613 | Socket, Light (2) |
|
- | |||||
| 12 | WP548049 | Light Bulb (2) (Replaces: 548049) |
|
$ 86.35 | |||||
| 13 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 14 | 2003758 | Wire, Light |
|
- | |||||
| 15 | 2001141 | Channel, Wiring |
|
- | |||||
| 16 | 1115375 | Clip, Wiring (2) |
|
$ 11.15 |
