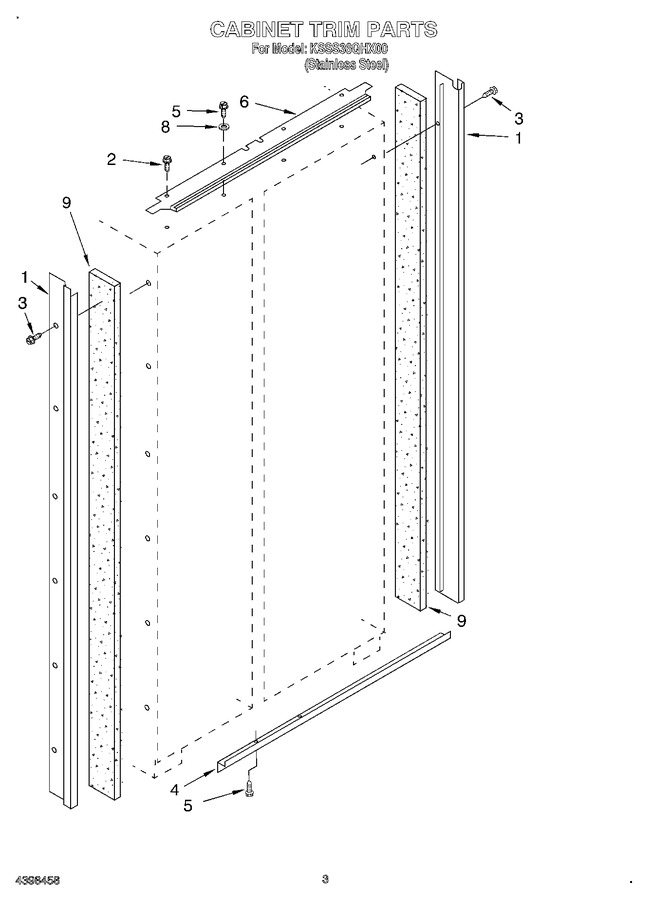

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2004553		Cabinet, Trim (2)		Appelez-nous	-
2	2003857		Screw		Appelez-nous	-
3	WP1163283		Screw   (Replaces: 1163283)				$ 7.19
4	2004536		Cabinet, Trim (bottom)		Appelez-nous	-
5	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
6	2003645		Cabinet, Trim Top		Appelez-nous	-
8	487944		Washer (2)		Appelez-nous	-
9	2005925		Seal, Side Trim				$ 83.72

    View Diagram in Separate Window       Print Part List
