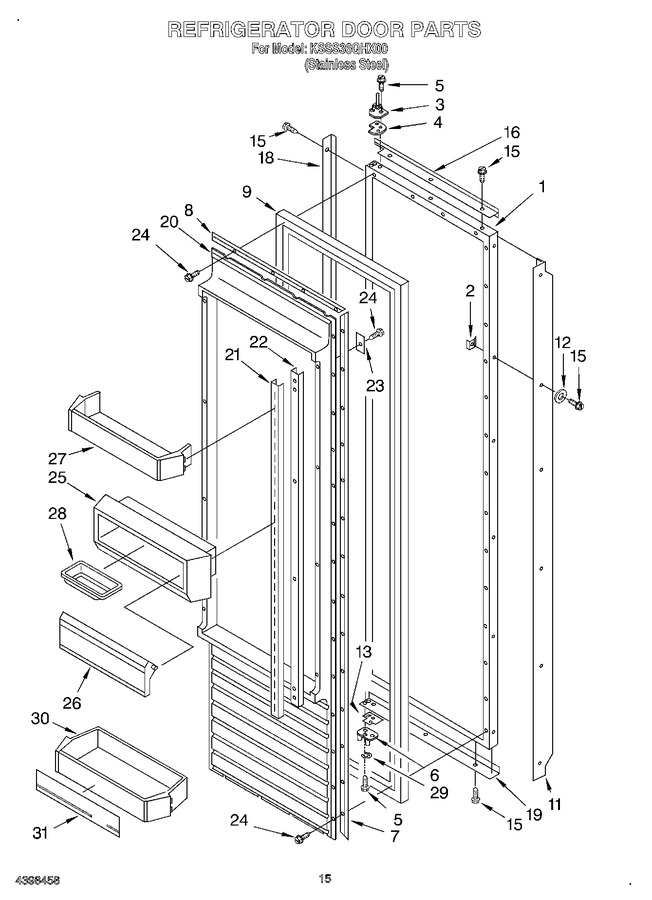

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003870		Refrigerator Door Panel (includes Insulation)		Appelez-nous	-
2	WP939101		Screw Anchor (8)   (Replaces: 939101)				$ 7.50
3	2005329		Hinge Assembly, Top		Appelez-nous	-
4	2004520		Spacer-door, Top		Appelez-nous	-
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
6	2004523		Hinge Assembly, Bottom				$ 29.76
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188319A		Door Gasket, Magnetic   (Replaces: 2005531)			Immediately	$ 316.41
11	2005952		Handle, Door		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2004549		Door, Spacer Bottom		Appelez-nous	-
15	WP488729		Screw, 8 - 15 X .500   (Replaces: 487052)			Immediately	$ 7.79
16	100005988		Trim (top)   (Replaces: 2005010)				$ 13.51
18	2005967		Trim (side)		Appelez-nous	-
19	2003663		Trim (bottom)		Appelez-nous	-
20	1113952		Panel, Interior Door		Appelez-nous	-
21	1113951		Ladder, Shelf (2)		Appelez-nous	-
22	1112530		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw   (Replaces: 486194)				$ 14.02
25	1112720		Bin, Utility		Appelez-nous	-
26	2003463		Door, Utility Bin		Appelez-nous	-
27	2003130		Door Shelf (4)		Appelez-nous	-
28	2165792		Tray, Butter		Appelez-nous	-
29	2004881		Retaining Ring, Door-closure		Appelez-nous	-
30	2207459		Shelf, Gallon Door		Appelez-nous	-
31	2207460		Overlay		Appelez-nous	-
