SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Cabinet Trim


03 - Freezer Liner


04 - Refrigerator Liner


05 - Refrigerator Control Panel


06 - Freezer Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Top Grille And Unit Cover


10 - Motor And Ice Container


11 - Refrigerator Door


12 - Freezer Door


13 - Dispenser Front


14 - Upper Unit


15 - Lower Unit And Tube


16 - Air Flow And Reservoir


17 - Ice Maker, Optional

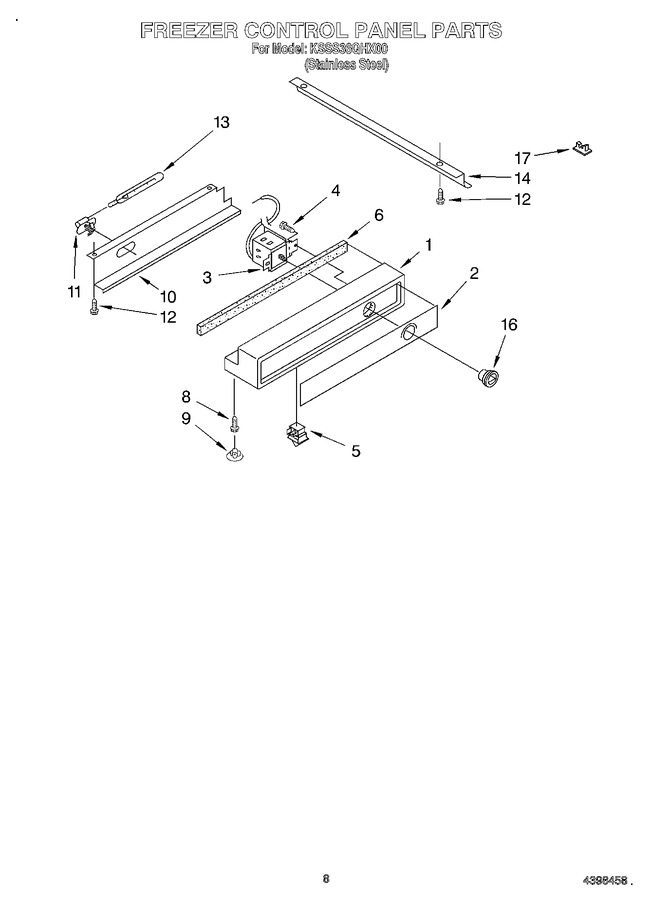

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1113625		Control Panel		Appelez-nous	-
2	2003307		Inlay, Control Panel		Appelez-nous	-
3	WP1113466		Thermostat & Barrier Assembly   (Replaces: 1113466)				$ 234.09
4	488974		Screw (2)		Appelez-nous	-
5	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
6	1113132		Seal, Control Panel		Appelez-nous	-
8	489260		Screw (3)		Appelez-nous	-
9	2000153		Hole Plug (3)		Appelez-nous	-
10	2005561		Shield, Control Panel		Appelez-nous	-
11	2005042		Socket, Light				$ 44.37
12	W11624204		Screw   (Replaces: 486194)				$ 14.02
13	WP548049		Light Bulb   (Replaces: 548049)				$ 86.35
14	2001142		Channel, Wiring		Appelez-nous	-
16	2182112		Knob, Thermostat		Appelez-nous	-
17	1115375		Clip, Wiring				$ 11.15

    View Diagram in Separate Window       Print Part List
