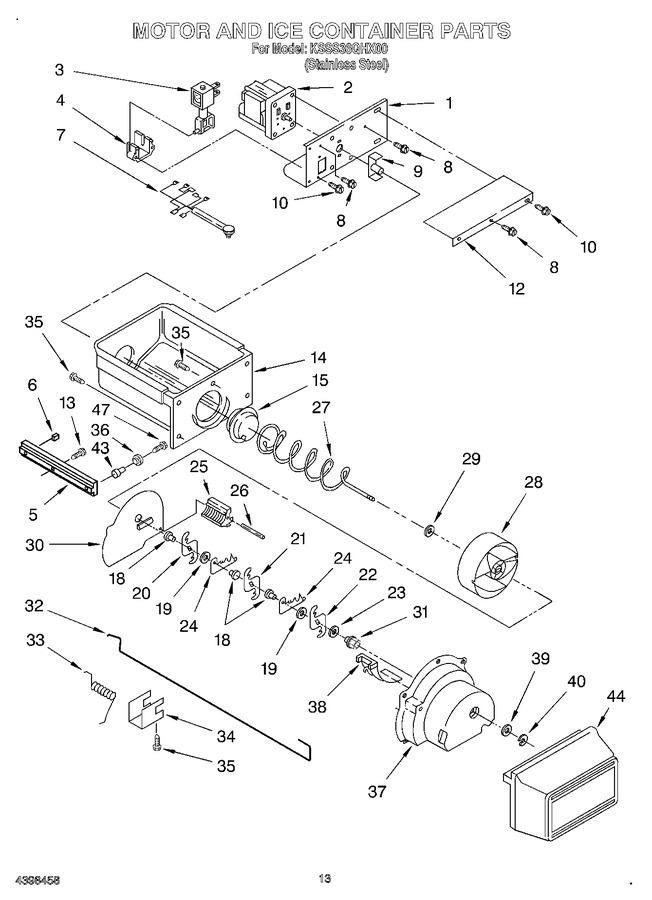

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2003939 | Bracket, Motor |
|
- | |||||
| 2 | WP2188242 | Motor, Dispenser (Replaces: 2155263) |
|
$ 368.69 | |||||
| 3 | 2003979 | Soleniod Assembly |
|
- | |||||
| 4 | W10850503 | Guide, Solenoid (Replaces: 2149100) |
|
$ 10.35 | |||||
| 5 | 2002720 | Slide, Container (right Side) |
|
- | |||||
| 5 | 2002721 | Slide, Container (left Side) |
|
- | |||||
| 6 | 1113169 | Stop, Roller |
|
$ 11.28 | |||||
| 7 | 2004006 | Wiring Assembly, Ice Dispenser |
|
- | |||||
| 8 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.95 | |||||
| 9 | WPW10169511 | Coupling, Motor (Replaces: 983663) |
|
$ 23.34 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 12 | 1113128 | Cover, Motor |
|
- | |||||
| 13 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 14 | 2208906 | Ice Container |
|
- | |||||
| 15 | W10749708 | Coupling, Conveyor (Replaces: 983668) |
|
$ 26.13 | |||||
| 18 | WP1119005 | Spacer, Step (3) (Replaces: 1119005) |
|
$ 11.18 | |||||
| 19 | WP1119007 | Spacer, Flat (2) (Replaces: 1119007) |
|
$ 14.07 | |||||
| 20 | W10278731 | Blade, Rotary (Replaces: 1119006) |
|
$ 86.54 | |||||
| 21 | W10278732 | Blade, Rotary (Replaces: 1119012) |
|
$ 86.67 | |||||
| 22 | W10278733 | Blade, Rotary (Replaces: 1119013) |
|
$ 86.67 | |||||
| 23 | 489235 | Washer, Plain |
|
$ 8.05 | |||||
| 24 | 1119009 | Blade, Fixed (2) |
|
$ 72.21 | |||||
| 25 | 2157405 | Block, Blade |
|
$ 21.27 | |||||
| 26 | 489229 | Roll Pin |
|
$ 46.16 | |||||
| 27 | 2160602 | Conveyor |
|
- | |||||
| 28 | 4388736 | Drum (Replaces: 2196194) |
|
$ 92.35 | |||||
| 29 | WP3400912 | Washer (Replaces: 3400912) |
|
$ 7.92 | |||||
| 30 | W10852691 | Floating Baffle (Replaces: 2171682) |
|
Immediately | $ 33.19 | ||||
| 31 | WP1119018 | Nut, Bearing (Replaces: 1119018) |
|
$ 7.52 | |||||
| 32 | 2002728 | Control Arm |
|
- | |||||
| 33 | 1119020 | Spring, Return |
|
$ 18.22 | |||||
| 34 | 1119021 | Retainer Clip, Rod |
|
$ 10.44 | |||||
| 35 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.58 | |||||
| 36 | 2188212 | Roller |
|
- | |||||
| 37 | WPW10185018 | Housing, Crusher (Replaces: 2180348) |
|
$ 124.43 | |||||
| 38 | WP1119017 | Deflector, Ice (Replaces: 1119017) |
|
$ 7.57 | |||||
| 39 | 489234 | Washer, Plain |
|
$ 13.37 | |||||
| 40 | WP489236 | Retainer Ring (Replaces: 489236) |
|
Immediately | $ 12.17 | ||||
| 43 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 44 | 2002722 | Front Cover, Ice Container |
|
- | |||||
| 47 | WPW10272364 | Screw (Replaces: 2003478) |
|
Immediately | $ 10.82 | ||||
| 99 | 2160606 | Complete Ice Crusher Mechanism Assembly |
|
- | |||||
| 100 | 2006541 | Complete Ice Container Assembly |
|
- |
